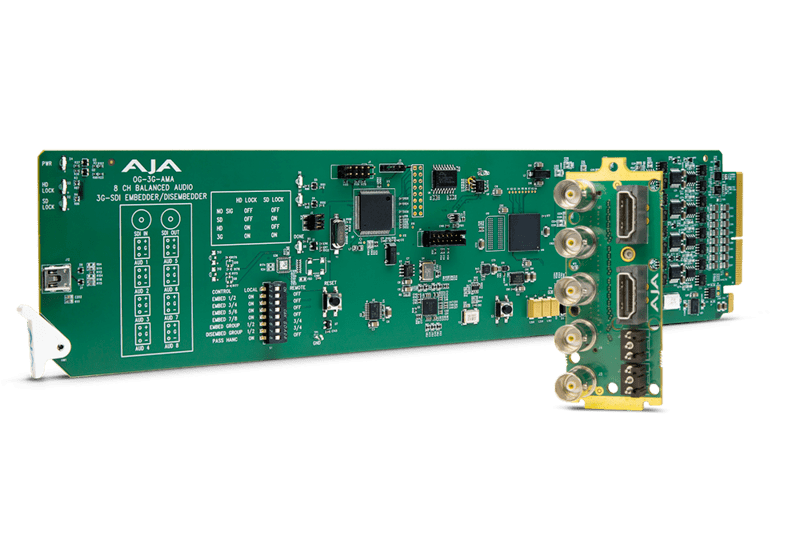

AJA OG-3G-AMA openGear 3G-SDI Analog Audio Embedder/Disembedder

Video Formats

2048 x 1080p
2048 x 1080PsF
1920 x 1080p
1920 x 1080PsF
1920 x 1080i
1280 x 720p
720 x 576i
720 x 480i

Video Input Digital

1 x 3G-SDI BNC, SMPTE-259/292/372/424

Video Input Formats

1 x 3 Gb SDI (Level A or B):
2048 x 1080p 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
2048 x 1080PsF 30, 29.97, 25, 24, 23.98
1920 x 1080p 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080PsF 30, 29.97, 25, 24, 23.98
1920 x 1080i 60, 59.94, 50
1280 x 720p 60, 59.94, 50

1 x 1.5 Gb SDI:
2048 x 1080p 30, 29.97, 25, 24, 23.98
2048 x 1080PsF 30, 29.97, 25, 24, 23.98
1920 x 1080p 30, 29.97, 25, 24, 23.98
1920 x 1080PsF 30, 29.97, 25, 24, 23.98
1920 x 1080i 60, 59.94, 50
1280 x 720p 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

1 x 270 Mb SDI:
625i 50
525i 59.94

Video Output Digital

1 x 3G-SDI BNC, SMPTE-259/292/372/424

Video Output Formats

3G Level A = 3.2 µsec
3G Level B = 6.1 µsec
HD (1.5 Gb) = 6.3 µsec
SD (270 Mb) = 17.2 µsec

Audio Connectors

8 x Analog Audio
4 x 2-Pair Balanced Analog Audio, 3-Pin Terminal Block Connectors
8-Channel Inputs & 8-Channel Outputs or 4-Channel Inputs & 4-Channel Outputs

Audio Converters

24-Bit

Embedded Audio

SMPTE 272M (SD): 20-Bit, 48 kHz Synchronous
SMPTE 299M (3G/HD): 24-Bit, 48 kHz Synchronous
16 Channels Supported on the SDI

Audio Latency

Embed Path: 1100 µsec
Disembed Path: 1200 µsec

Analog Audio

Levels:
Pro 1: 0 dBfs = +24 dBu
Pro 2: 0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu

Controls

External DIP Switch
openGear DashBoard Network Control Software via Windows, macOS, or Linux

Power

openGear Frame Compatible, 5.0 W Max per Card

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-40 to 140°F / -40 to 60°C

Operating Humidity

10 to 90%

Operating Altitude

<10,000' / <3000 m

Size

openGear Standard Form Factor

Weight

0.5 lb / 0.3 kg
