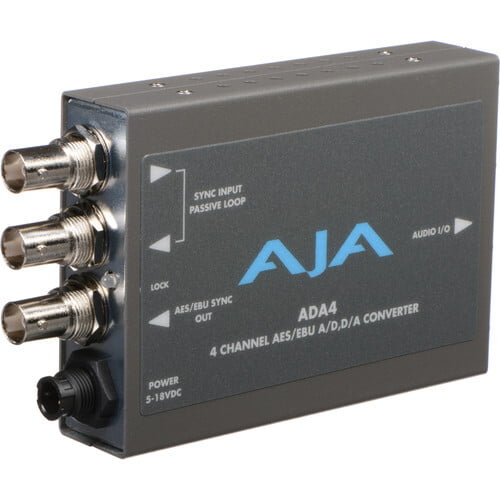

AJA 4-Channel Bi-Directional Audio A/D & D/A Converter

Audio I/O Analog

Balanced, XLR, one channel per XLR connector

Audio I/O AES

Balanced 110 ohm, XLR, two channels per XLR connector

Audio Levels Analog
(with Respect to Full Scale Digital)

+24dBu (SMPTE RP155), +18dBu (EBU R68), +15dBu (Germany), +10dBV (consumer +12.2 dBu)

Audio Converters

24-bit, 48/96 KHz

User Controls

External Dipswitch:

Channel 1/2: A/D, D/A

Channel 3/4: A/D, D/A

Audio Level 1

Audio Level 2

Reference Loop

75 Ohm, unterminated, HD/SD Sync, AES-11, or Wordclock (48/96 KHz)

Size (w x d x h)

5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Power

+5-18VDC, 3 watts. power supply required, included with purchase

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
