Vinten System Vision 100 2-stage Al PL MS SC

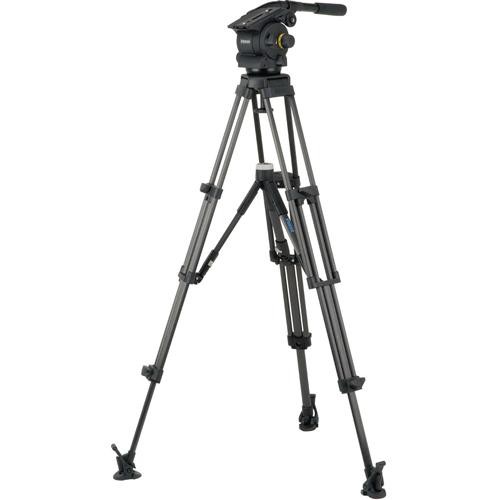

The Vinten VB100-AP2M is a Vision 100 tripod system. This system features the Vision 100 head, two-stage aluminum Pozi-Loc tripod and mid-level spreader. This system offers the user a great location set-up with the ability to accept a large camera package with accessories.
Specification
General | |
Load Capacity | 44.1 lbs (20 kg) |
Maximum Height | 66.6" (169.2cm) |
Maximum Height w/o Column Extended | N/A |
Minimum Height | 21.5" (54.6cm) |
Folded Length | 33.1" (84.0cm) |
Leveling Bubble/Illuminated | Yes/Yes |
Weight | 15.6 lbs (7.0 kg) |
Head | |
Counter Balance System | Continuously variable spring |
Quick Release/Wedge Plate | Yes (#3364-900SP) |
Balance Plate | Yes, with 100mm of travel |
Tilt Drag | Continuously variable fluid drag |
Tilt Range | -90 to +90° |
Tilt Lock | Separate |
Spring Loaded Counter Balance | Continuously variable fluid drag |
Pan Range | 360° |
Pan Lock | Separate |
Legs | |
Material | Aluminum |
Head Attachment Fitting | 100mm |
Leg Stages/Sections | 2/3 |
Leg Lock Type | Pozi-Loc Cam Locks |
Independent Leg Spread | Yes |
Spiked/Retractable Feet | Spiked |
Center Brace | Mid-Level Spread-Loc |
