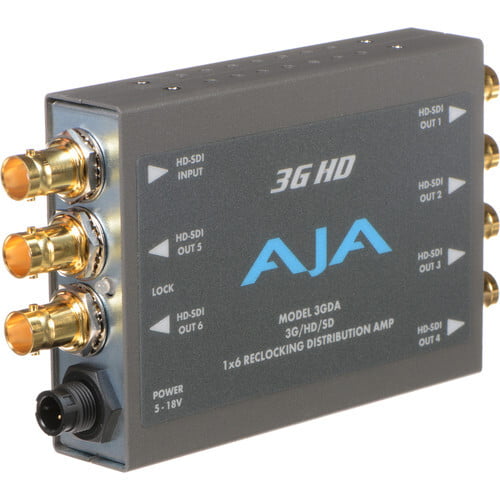

AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier
Video Formats
• 100 Mbps - 3 Gbps, format agnostic
Video Input Digital
• 1 x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
• 6 x 3G-SDI BNC, SMPTE-259/292/424
Cable Equalization
(Belden 1694A coax)
• 3 Gbps, 120m
• 1.5 Gbps, 200m
• 270 Mbps, 350m
Input / Output Return Loss
• >15db, 270 Mb - 3 Gb
Reclocking
• 2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select
• All other rates are passed through and not reclocked
Size (w x d x h)
• 5.8" x 3.1 x 1" (131mm x 79mm x 25mm)
Weight
• 0.7 lb (0.3 kg)
Power
• +5-18VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
