DATAVIDEO PTC-140T HDBaseT Pan/Tilt Camera

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Sensor Resolution

Effective: 2.07 Megapixel

Gain

0 to 15 dB

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

White Balance Range

3000 to 6500K

Max Digital Zoom

10x

Built-In Speaker

No

Flip / Mirror Support

Image Flip, Mirror (Vertical)

Optical Zoom Ratio

20x

Focal Length

5.2 to 98mm

Field of View

Horizontal: 54.7 to 3.3°

Maximum Aperture

f/1.6 to 3.5

Focus Control

Autofocus
Manual Focus

Output Formats

RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps

IP Streaming

H.264, H.265, RTMP, RTSP: 1080p

Recording Modes

Not Specified by Manufacturer

Presets

255 via IR, RS-232, VISCA

Move Speed

Pan: 0.1 to 60°/sec
Tilt: 0.1 to 30°/sec

Movement Range

Pan: 340°
Tilt: 120° (-30 to 90°)

Tally Light

Yes

Supported Control Protocols

IP
IR
RS-232
VISCA

Max Cable Length

328.1' / 100 m (Cat 6)

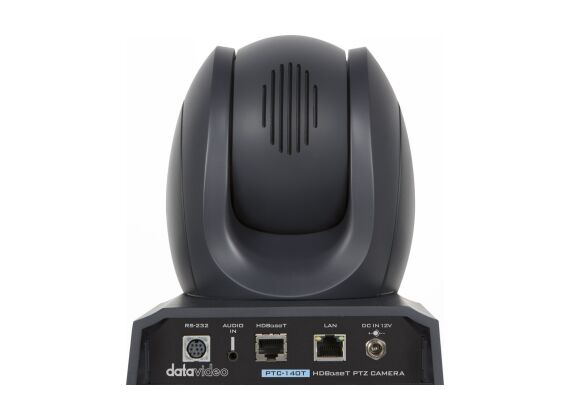

Video Output Connectors

1 x RJ45 (HDBaseT) Female
1 x RJ45 Female

Audio I/O

1 x 1/8" / 3.5 mm Stereo Line Level Input

Control Interface

1 x 8-Pin Mini-DIN (RS-232) Input
1 x RJ45 (LAN) Output

PoE Support

None

Power Connectors

1 x Barrel / Coaxial (12 VDC)

Power Consumption

Device: 12 W

Operating Temperature

32 to 104°F / 0 to 40°C

Tripod Mounting Thread

1 x 1/4"-20 Female

Certifications

CE, FCC, as per Manufacturer

Dimensions

7.3 x 7.2 x 6.1" / 186 x 182 x 156 mm

Weight

56.4 oz / 1.6 kg

Package Weight

Box Dimensions (LxWxH)

14.4 x 11.5 x 11"
