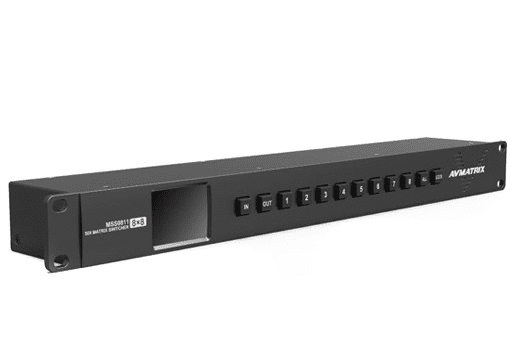

AVMATRIX 8 x 8 3G-SDI Matrix Switcher (1 RU)

Connectors

8 x BNC, SD/HD/3G-SDI/DVB-ASI Inputs
8 x BNC, SD/HD/3G-SDI/DVB-ASI Outputs
1 x RJ45, LAN Control Port, on Back Panel
1 x RS-232, Control Port, on Back Panel
1 x USB Type-A, Control Port, on Back Panel

SDI Input Formats

1080p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080PsF at 30, 29.97, 25, 24, 23.98
1080i at 60, 59.94, 50
720p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
625i at 50, 525i, 59.94

SDI Video Rates

SD/HD/3G-SDI

SDI Compliance

SMPTE 259M/292M/296M/372M/424M/425M

SDI Color Precision

RGB 4:4:4 10/12-Bit, YUV 4:2:2/4:4:4 10/12-Bit

SDI Auto Switching

Auto Selects SD, HD, and 3G-SDI on Input

Power Connector

Threaded Locking Connector

Voltage Range

6-24 VDC

Power Supply

PS-1, PS-2, Power Redundancy

Power Consumption

7 W

Relative Humidity

0 to 90% Non-Condensing

Temperature

Operating: -4 to 140°F / -20 to 60°C
Storage: -22 to 158°F / -30 to 70°C

Rackmount

1 RU

Dimensions

19.0 x 1.75 x 2.85" / 482.5 x 44.0 x 72.5 mm

Weight

2.4 lb / 1.1 kg

Package Weight

Box Dimensions (LxWxH)

21.8 x 7.8 x 3.4"
