Vinten VB250-CP2M System Vision 250 2-stage CF PL GS SC

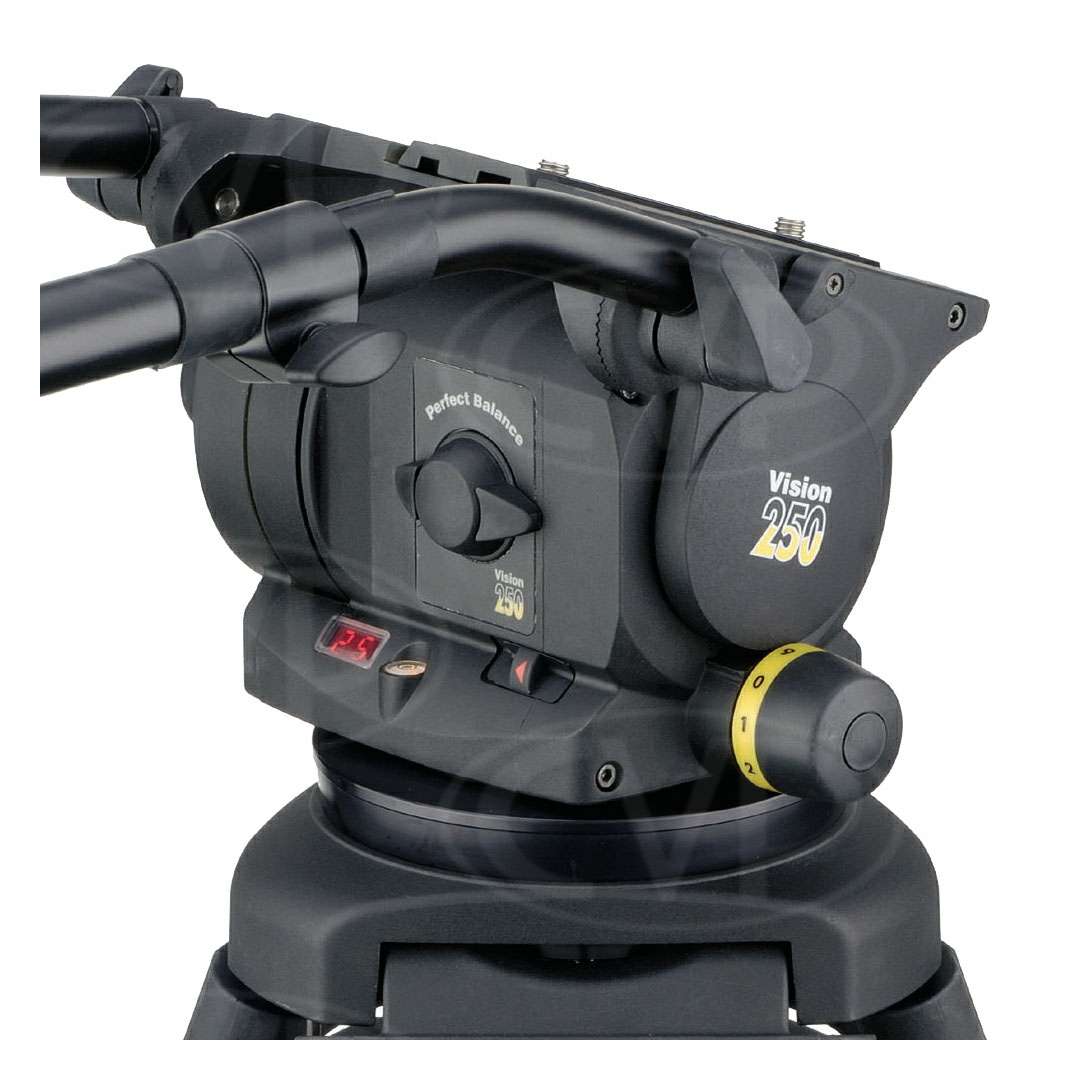

The Vinten VISION 250 Carbon Fiber Tripod System with Mid-Spreader (Black) consists of the Vision 250 fluid head designed to support the latest portable digital camera combinations used in studio and outside broadcast production.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Plate Type | Vinten 33364-900SP |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Balance Plate Sliding Range | 4" / 101.6 mm |
Tripod Platform
Base Mount | 150 mm Half Ball |
Pan & Tilt
Drag Control | Tilt: Continuous Plus 0 |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 72.8 lb / 33 kg |
Counter Balance | Continuous (22 to 72.8 lb / 9.98 to 33.02 kg) |
Center of Gravity | 5" / 12.7 cm |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 13.5 lb / 6.1 kg |
