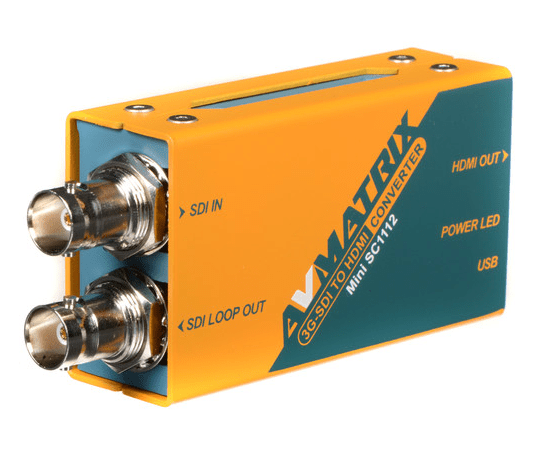

AVMATRIX 3G-SDI to HDMI Mini Converter

Input

1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported)

Output

1 x HDMI type-A
1 x 3G/HD/SD-SDI loop out

SDI Format Support

1080p at 50/59.94/60 fps
1080psf at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
625i at 50 fps
525i at 59.94 fps

SDI Compliance

SMPTE 292M/SMPTE 259M/SMPTE 424M

SDI Color Space

YUV 4:2:2

HDMI Format Support

1080p at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps

HDMI Color Space

YUV 4:2:2

Power Port

1 x micro-USB

Power Consumption

1.5 W

Voltage Range

3.3 - 5 V

Operating Temperature

-4 to 140°F (-20 to 60°C)

Storage Temperature

-22 to 158°F (-30 to 70°C)

Relative Humidity

0 to 90% non-condensing

Dimensions

2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm)

Package Weight

0.9 lb

Box Dimensions (LxWxH)

4.6 x 3.3 x 3.1"
