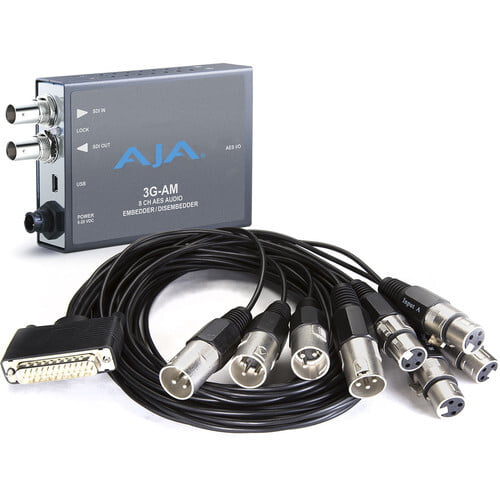

AJA 3G-AM-XLR AJA 3G-AM-XLR 3G-SDI 8-Channel AES Audio Embedder/Disembedder with XLR Breakout Cable
$1,035.00
Tags:
The 3G-AM is an 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs.
Product Details
SPECIFICATION
Video Input Formats
- 1 x 3 Gb SDI (level A or B)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1 x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1 x 270 Mb SDI
- (SD) 625i
- (SD) 525i
Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
Audio Inputs and Outputs
- AES PCM audio, 1x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs
- Breakout cable provided with 1x 25 pin D male connector:
- 4x XLR female input breakout connectors (AES3 110 ohm)
- 4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats
- AES3-2003
- SMPTE 337M
Digital Audio Converters
- 24-bit
Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 KHz synchronous
- SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Up to 16-Channels supported
NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
Embed Path Audio Latency
(time measured between audio input and video output connector):
- 1500 usec (SRC ON)
- 400 usec (SRC OFF)
Disembed Path Audio Latency
(time measured between video input and audio output connector):
- 210 usec
User Controls
- External DIP switch
- USB port used with Mini-Config software application to configure device via PC/Mac
Size (w x d x h)
- 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Power
- +5-20VDC, 5 watts power supply required, included with purchase
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
