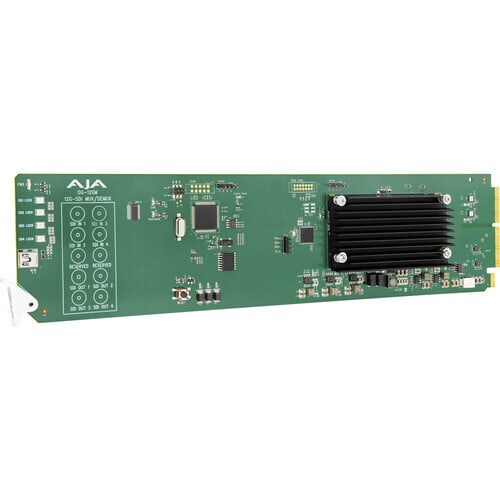

Aja OG-12GM 12G-SDI to/from SDI Muxer/Demuxer openGear Card

Video Formats

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080p 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

(SD) 625i 50

(SD) 525i 59.94

YCbCr 4:2:2/4:4:4

RGB 4:4:4, SMPTE or Full level

10 or 12-bit

Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in Documents and Manual.

Video Input and Output Digital

4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082

Single Link 12G/6G/3G/1.5G-SDI

Dual Link 2x6G/2x3G/2x1.5G-SDI

Quad Link 4x3G Level A or B Dual Link/4x1.5G-SDI

Supported Conversions and Fuctions

Quad 3G-SDI Level A to Single 12G-SDI

Quad 3G-SDI Level B Dual Link to Single 12G-SDI

Single 12G-SDI to Quad 3G-SDI Level A

Single 12G-SDI to Quad 3G-SDI Level B Dual Link

Quad 3G-SDI Level A to Dual 6G-SDI

Quad 3G-SDI Level B Dual Link to Dual 6G-SDI

Dual 6G-SDI to Quad 3G-SDI Level A

Dual 6G-SDI to Quad 3G-SDI Level B Dual Link

Dual 3G-SDI Level A to Single 6G-SDI

Dual 3G-SDI Level B Dual Link to Single 6G-SDI

Single 6G-SDI to Dual 3G-SDI Level A

Single 6G-SDI to Dual 3G-SDI Level B Dual Link

Quad 1.5G-SDI to Single 6G-SDI

Single 6G-SDI to Quad 1.5G-SDI

Dual 1.5G-SDI to Single 3G-SDI Level A

Dual 1.5G-SDI to Single 3G-SDI Level B Dual Link

Single 3G-SDI Level A to Dual 1.5G-SDI

Single 3G-SDI Level B Dual Link to Dual 1.5G-SDI

Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link

Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A

Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping

Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping

HDR VPID pass-through or override for Colorimetry and Transfer Characteristic

Pass-through of Single Link 12 Gbps, 6 Gbps, 3 Gbps, 1.5 Gbps, and 270 Mbps SDI video

Distribution Amplifier support (1x4)

Input signal diagnostics

Input timing analyzer for Quad Link signals

Cable Equalization

(Belden 1694A coax)

12 Gbps, 70m

6 Gbps, 100m

3 Gbps, 140m

1.5 Gbps, 200m

270 Mbps, 300m

Audio Input/Output Digital

Passes SDI embedded audio, 24-bit, up to 16-channels

User Interface

openGear DashBoard network control software via Windows, macOS, or Linux

Size

openGear standard form factor, front slot and rear card.

Two slots required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 13.0 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
