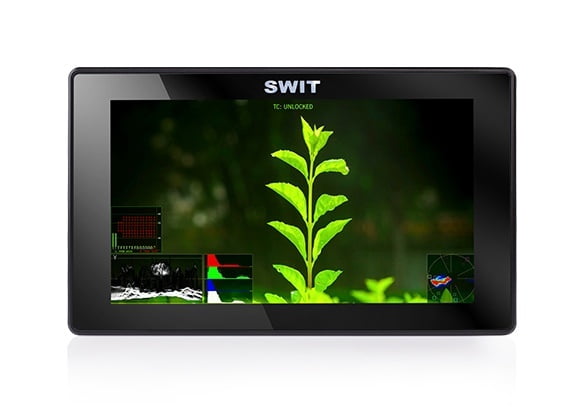

Swit S-1053F (Simple package) 5.5-inch FHD Cine Camera Top LCD Monitor

Size

5.5" (14 cm)

Display Area

4.76 x 2.67" (120.96 x 68.04 mm)

Resolution

1920 x 1080

Aspect Ratio

16:9 (4:3 adjustable)

Brightness

400 cd/m²

Contrast Ratio

1000:1

Color

16.77 million colors

Viewing Angle

Horizontal: 160°
Vertical: 160°

Input

BNC: 2K/3G/HD/SD-SDI
HDMI 1.3
Micro-USB firmware upgrade

Output

BNC: 2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output
1/8" (3.5 mm): SDI, HDMI, embedded audio output

SDI

SMPTE 2048-2: 2048 x 1080p (23.98/24/25/29.97/30/50/59.94/60) / 2048 x 1080i (50/59.94/60)
SMPTE-425M: 1080p (60/ 59.94/50)
SMPTE-274M: 1080i (60/59.94/50) / 1080p (30/29.97/25/24/23.98)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)

HDMI

480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98)

Operating Voltage

Battery 6.5 to 24 VDC

Power Consumption

12 W

Operating Temperature

14 to 122°F (-10 to 50°C)

Operating Humidity

10 to 90%

Storage Temperature

5 to 140°F (-15 to 60°C)

Storage Humidity

10 to 90%

Dimensions

5.9 x 3.5 x 1.2" (151 x 91 x 32 mm)

Weight

13 oz (375 g)

Battery

SWIT S-8BG6; Panasonic VW-VBG6

Output Voltage

Nominal 7.2 VDC

Dimensions

4 x 2 x 0.7" (102 x 46 x 19 mm)

Weight
