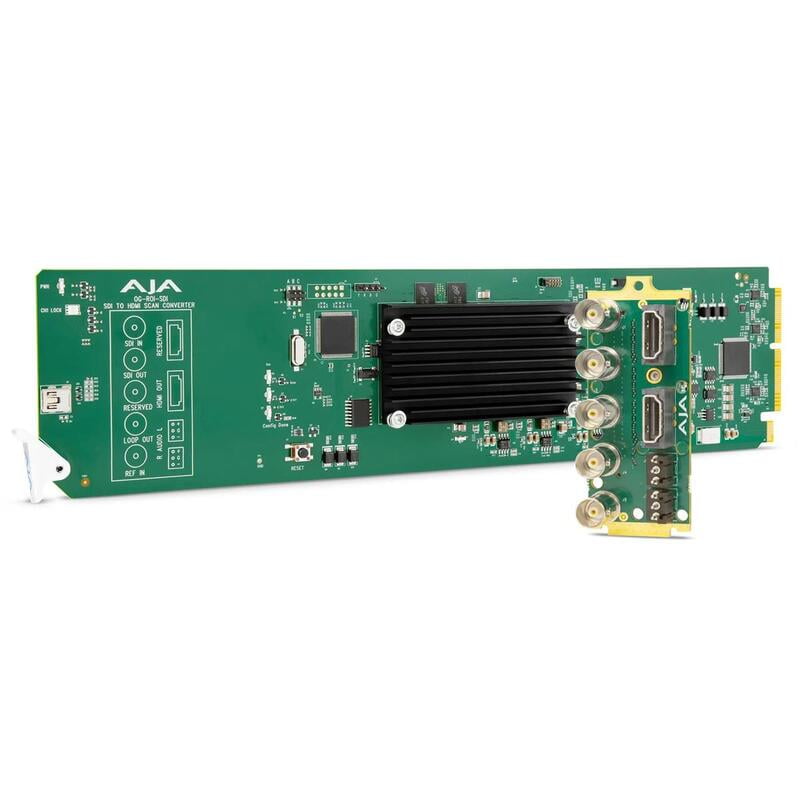

Aja OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter
Video Input Formats
Video Signals:
(HD) 1920x1080i 50, 59.94
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i, 50
(SD) 525i, 59.94
Video Output Formats
(HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
Color Range
Full
SMPTE
Reference Source
Free Run
Ext Ref
Reference Input
Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75 ohm terminating
Video Input
1x 3G-SDI BNC, SMPTE-259/292/424
Video Outputs
1x 3G-SDI BNC, loop through
1x 3G-SDI BNC, SMPTE-259/292/424
1x HDMI Type A, HDMI v1.4
Audio I/O
24-bit, 16-channel embedded SDI audio input
24-bit, 16-channel embedded SDI audio output
24-bit, 8-channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal block connectors
User Interface
openGear DashBoard network control software via Windows, macOS or Linux
Size
openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 7.0 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
