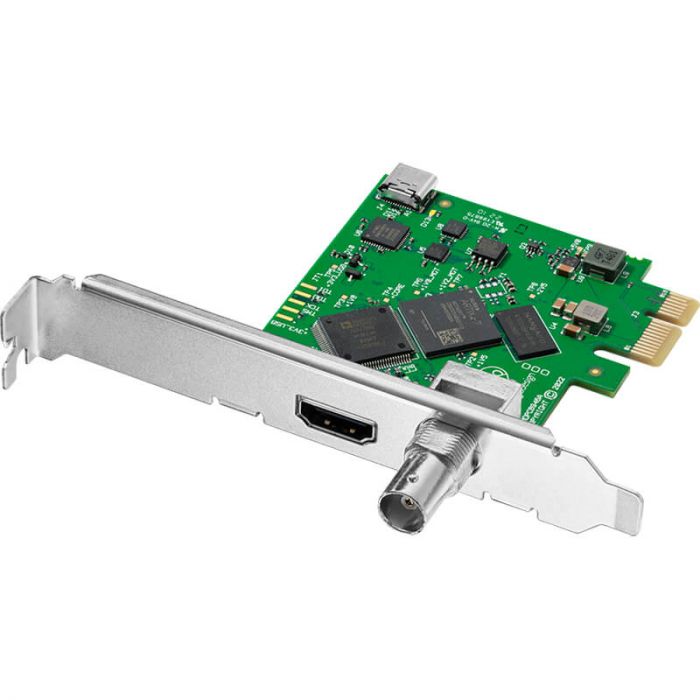

Blackmagic Design DeckLink Mini Monitor HD

Video Output Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Monitor)
1 x HDMI (HDMI 2.0) (Monitor)

Output Video Format

SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Audio Output Connectors

None

Embedded Audio Output

SDI: 16-Channel (per Output)
HDMI: 8-Channel (per Output)

Video Standard Compliance

SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1

HDR Compatibility

Not Specified by Manufacturer

OS Compatibility

macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility

Power Consumption

Device: 3 W

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90% (Non-Condensing)

Storage Humidity

0 to 90% (Non-Condensing)

Dimensions

3.62" / 91.95 mm

Weight

1.98 oz / 56 g
