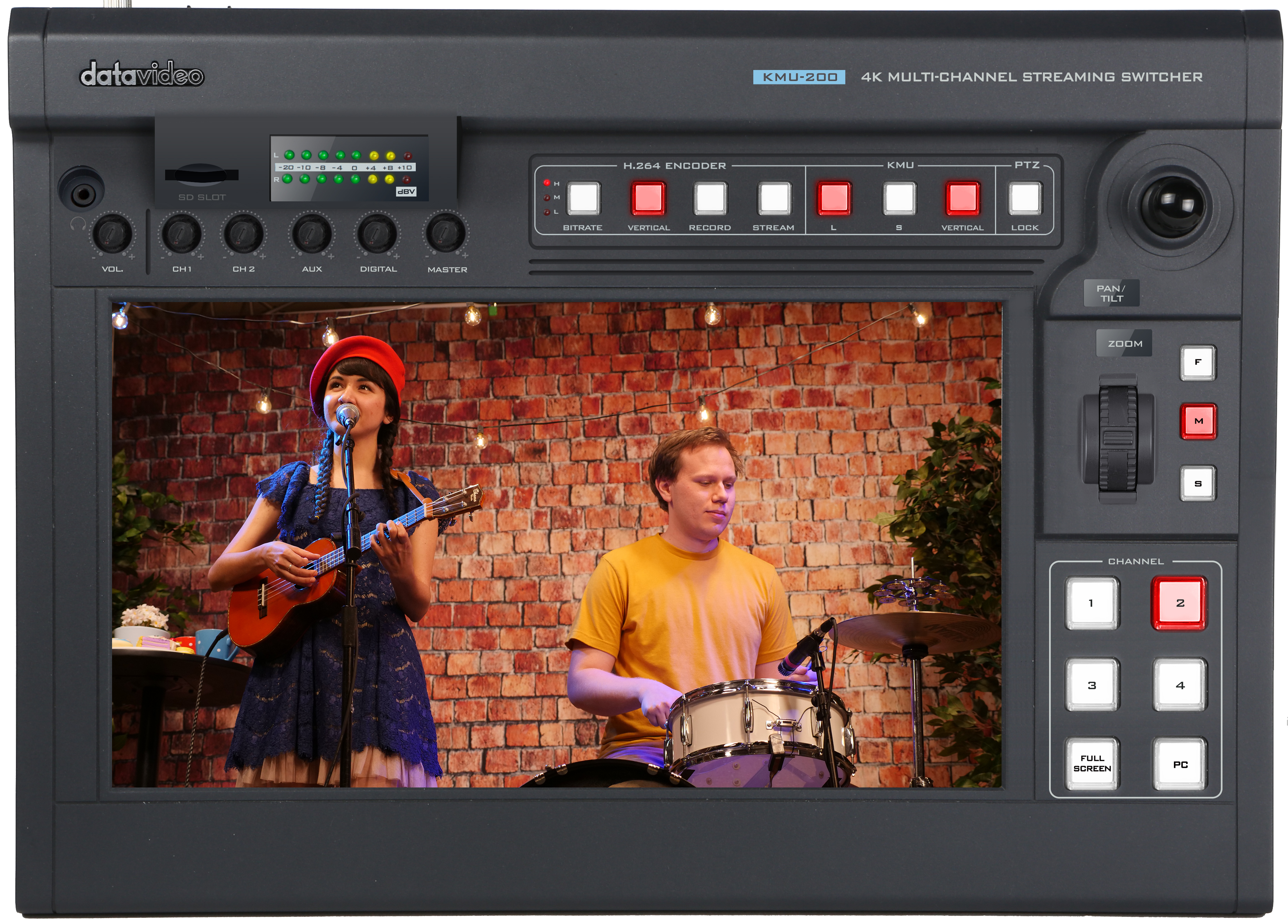

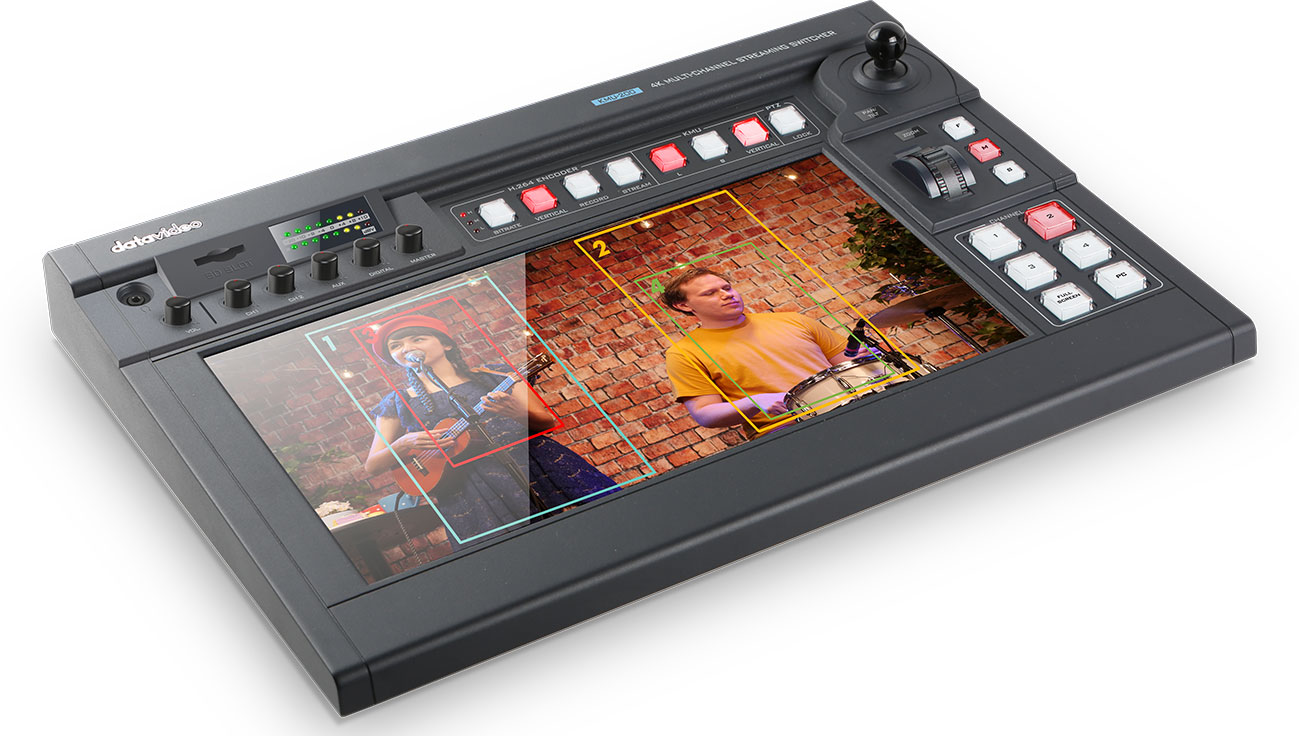

DATAVIDEO KMU-200 - 4K Multi-Channel Touch Screen Region of Interest Switcher

UHD & HD

Video Format

Input:
 3840x2160p 23.98/24/25/29.97/30/50/59.94/60
 1080p 50/59.94/60
Output:
 1080p 50/59.94/60
 720p 50/59.94/60

Video Processing

4:4:4 / 4:2:2 / 4:2:0

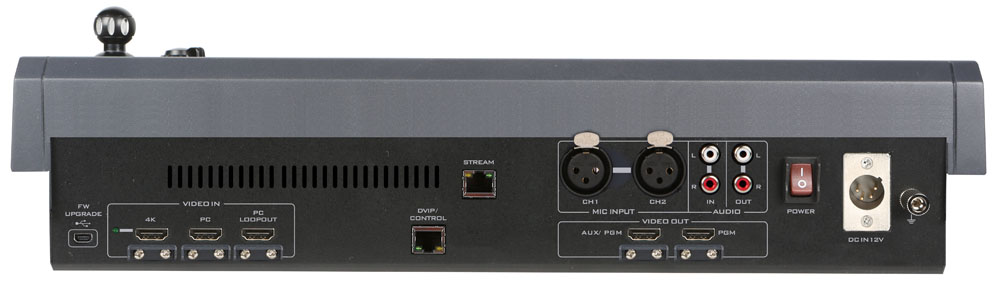

Video Input

1x HDMI 2.0
1x HDMI 1.4 with Loop through

Video Output

2x HDMI 1.4

Support Video Output Resolution

1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60

Multiview Out

N/A

Multiview Mode

N/A

Streaming Encode

H.264/AVC, Main/High Profile

Streaming Video Bitrate

Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)

Streaming Video Rate Mode

CBR

Streaming Audio Mode

Stereo/Mono

Streaming Audio Bitrate

Stereo: 64~384Kbps
Mono: 32~192Kbps

Streaming Protocols

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT

Network Interface

1x RJ45 (10/100Mbps Ethernet)

Recording Storage Medium

SD Card

Recording Storage File System

MP4

Built-in Audio Mixer

Yes, 4 channels

Audio Input

2x XLR(Mic)
2x RCA

Audio Output

2x Unbalanced RCA

Audio Sampling

N/A

Reference Input

N/A

Control Interface

N/A

Preview Display

14” Capacitive Touch LCD

Controller

N/A

Dimension (LxWxH)

438 x 331 x 114 mm

Weight

4.3 kg

Power Supply

DC 12V, 52W

Operating Temp. Range

0~40 °C

What's in the box

1 x KMU-200 Main Unit
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card
