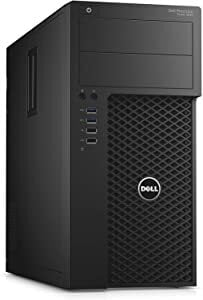

Dell 3620 Precision Workstation Tower
Table 1. Processor. | |
FEATURE | SPECIFICATION |
Processor type |
|
Total cache | Up to 8 MB cache depending on processor type |
Table 2. Memory. | |
FEATURE | SPECIFICATION |
Type | DDR4, NECC, and ECC |
Speed | 2133 MHz |
Connectors | Four DIMM slots |
Capacity | 4 GB, 8 GB, and 16 GB |
Minimum memory | 4 GB |
Maximum memory | 64 GB |
Table 3. Video. | |
FEATURE | SPECIFICATION |
Integrated |
|
Discrete | PCI Express x16 graphics adapter |
Table 4. Audio. | |
FEATURE | SPECIFICATION |
Integrated | Two Channel High Definition Audio |
Table 5. Network. | |
FEATURE | SPECIFICATION |
Integrated | Intel I219LM Ethernet capable of 10/100/1000 Mb/s communication |
Table 6. System information . | |
FEATURE | SPECIFICATION |
System chipset | Intel C236 chipset |
DMA channels | Two 8237 DMA controllers with seven independently programmable channels |
Interrupt cevels | Integrated I/O APIC capability with 24 interrupts |
BIOS chip (NVRAM) | 16 MB |
Table 7. Expansion bus . | |
FEATURE | SPECIFICATION |
BustType | PCIe gen3 (x16), USB 2.0, and USB 3.0 |
Bus speed | PCI Express:
|
| SATA: 1.5 Gbps, 3.0 Gbps, and 6 Gbps |
Table 8. Cards . | |
FEATURE | SPECIFICATION |
PCI | Up to one full-height card |
PCI Express x4 | Up to one full-height card |
PCI-Express x16 | Up to two full-height cards |
Table 9. Drives. | ||||
FEATURE | SPECIFICATION | |||
Externally accessible (5.25-inch drive bay) | Two | |||
Internally accessible | 3.5-inch SATA drive bays | 2.5-inch SATA drive bays | PCIe drive bay | M.2 SSD (optional) |
Two | Four | One | One |
Table 10. External connectors. | ||
FEATURE | SPECIFICATION | |
Audio | ||
| Front panel | One universal audio jack with microphone in and headphone connector |
| Back panel | One line-out connector |
Network adapter | One RJ-45 connector | |
Serial | One 9-pin connector; 16550 C compatible | |
USB 2.0 | Front panel: two | |
| Back panel: two | |
USB 3.0 | Front panel: two | |
| Back panel: four | |
HDMI out | One | |
Video |
|
Table 11. Internal connectors . | ||
FEATURE | SPECIFICATION | |
PCI 2.3 data width (maximum) - 32 bits | ||
| Mini Tower | One 120-pin connector |
PCI Express x4 data width (maximum) - four PCI Express lane | ||
| Mini Tower | One 64–pin connector |
PCI Express x16 (wired as x4) data width (maximum) - four PCI Express lanes | ||
| Mini Tower | One 164-pin connector |
PCI Express x16 data width (maximum) - 16 PCI Express lanes | ||
Serial ATA |
| |
| Mini Tower | Four 7-pin connectors |
M.2 SSD | ||
| Optional | Gen 3x4 Slot |
Memory | Four 288-pin connectors | |
Internal USB |
| |
| Mini Tower | One 20-pin connector |
System fan | One 4-pin connector | |
Front panel control |
| |
| Mini Tower | One 6–pin and two 20–pin connector |
Mini Tower – thermal sensor | One 2-pin connector | |
Processor | One 1150-pin connector | |
Processor fan | One 4-pin connector | |
Service mode jumper | One 2-pin connector | |
Password clear jumper | One 2-pin connector | |
RTC reset jumper | One 2-pin connector | |
Internal speaker | One 4-pin connector | |
Intruder connector | One 3-pin connector | |
Power connector: | One 8-pin. one 4-pin, |
Table 12. Controls and lights . | ||
FEATURE | SPECIFICATION | |
Front of the computer | ||
| Power button light | White light — Solid white light indicates power-on state; blinking white light indicates sleep state of the computer. |
| Drive activity light | White light — Blinking white light indicates that the computer is reading data from or writing data to the hard drive. |
Back of the computer | ||
| Link integrity light on integrated network adapter | Green — a 10 Mbps connection exists between the network and the computer. |
| Green — a 100 Mbps connection exists between the network and the computer. | |
| Orange — a 1000 Mbps connection exists between the network and the computer. | |
| Off (no light) — the computer is not detecting a physical connection to the network. | |
| Network activity light on integrated network adapter | Yellow light — A blinking yellow light indicates that network activity is present. |
| Power supply diagnostic light | Green light — The power supply is turned on and is functional. The power cable must be connected to the power connector (at the back of the computer) and the electrical outlet. |
Table 13. Power. | |||
POWER | WATTAGE | MAXIMUM HEAT DISSIPATION | VOLTAGE |
Mini Tower: | 290 W | 989.00 BTU/hr | 100 V AC to 240 V AC, 50 Hz to 60 Hz, 5.4 A |
| 365 W EPA | 1245 BTU/hr | 100 V AC to 240 V AC, 50 Hz to 60 Hz, 5.0 A |
Coin cell battery | 3 V CR2032 lithium coin cell |
Table 14. Physical dimension. | ||||
PHYSICAL | HEIGHT | WIDTH | DEPTH | WEIGHT |
Mini Tower | 360.00 mm (14.17 inches) | 175.00 mm (6.88 inches) | 435.00 mm (17.12 inches) | 11.70 kg (25.70 lb) |
Table 15. Environmental. | ||
FEATURE | SPECIFICATION | |
Temperature range | ||
| Operating | 5°C to 35°C (41°F to 95°F) |
| Storage | –40°C to 65°C (–40°F to 149°F) |
Relative humidity (maximum) | ||
| Operating | 20 percent to 80 percent (non-condensing) |
| Storage | 5 percent to 95 percent (non-condensing) |
Maximum vibration | ||
| Operating | 0.26 GRMS |
| Storage | 2.20 GRMS |
Maximum shock | ||
| Operating | 40 G |
| Storage | 105 G |
Altitude | ||
| Operating | –15.2 m to 3048 m (–50 to 10,000 ft) |
| Storage | –15.20 m to 10,668 m (–50 ft to 35,000 ft) |
| Airborne contaminant level | G1 or lower as defined by ANSI/ISA-S71.04-1985 |
