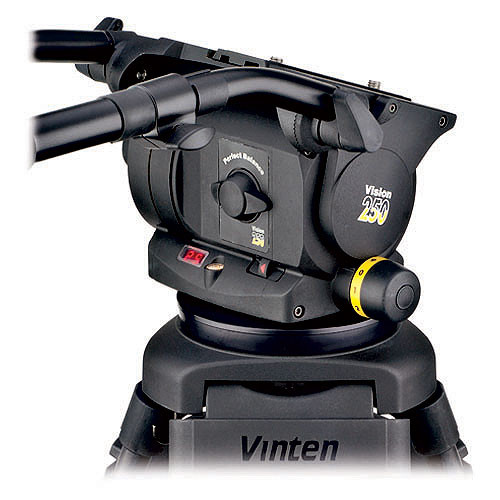

Vinten Head Vision 250 ball base
The VISION 250 HD Fluid Head from Vinten is designed to support the latest portable digital camera combinations used in studio and field broadcast productions. With its unique twin balancing mechanism, the Vision 250 can be fully adjusted to perfectly balance any camera or lens combination—either weighing up to 72.8 lb—quickly and easily.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Plate Type | Vinten 33364-900SP |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Balance Plate Sliding Range | 4" / 101.6 mm |
Tripod Platform
Base Mount | 150 mm Half Ball |
Pan & Tilt
Drag Control | Tilt: Continuous Plus 0 |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 72.8 lb / 33 kg |
Counter Balance | Continuous (22 to 72.8 lb / 9.98 to 33.02 kg) |
Center of Gravity | 5" / 12.7 cm |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 11 kg |
