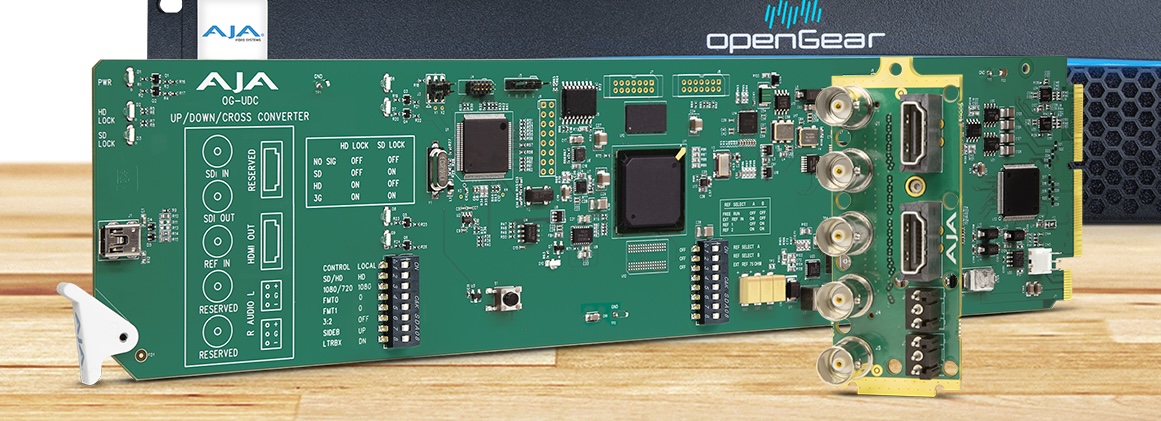

AJA OG-UDC 3G-SDI Up, Down, Cross-Converter

Video Formats

(2K) 2048 x 1080p
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080PsF
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 625i
(SD) 720 x 576i
(SD) 720 x 480i

Video Input Digital

1x 3G-SDI BNC, SMPTE-259/292/372/424
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720x576i 50, 59.94, 60

Video Output Digital

1x 3G-SDI BNC, SMPTE-259/292/372/424
(HD) 1080p 23.98 (for 23.98 video inputs)
(HD) 1080p 24 (for 24 video inputs)
(HD) 1080p 25 (for 50 video inputs)
(HD) 1080p 29.97 (for 59.94 video inputs)
(HD) 1080p 30 (for 60 video inputs)
(HD) 1080p 50 (for 50 video inputs)
(HD) 1080p 59.94 (for 23.98, 59.94 video inputs)

Video Output Digital (Cont.)

(HD) 1080p 60 (for 24, 30 or 60 video inputs)
(HD) 1080PsF 23.98 (for 23.98 video inputs)
(HD) 1080PsF 24 (for 24 video inputs)
(HD) 1080PsF 25 (for 50 video inputs)
(HD) 1080PsF 29.97 (for 59.94 video inputs)
(HD) 1080Psf 30 (for 30 or 60 video inputs)
(HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)

Video Output Digital (Cont..)

(HD) 1080i 60 (for 24, 30, or 60 video inputs)
(HD) 1080i 50 (for 25 or 50 video inputs)
(HD) 720p 50 (for 50 video inputs)
(HD) 720p 59.94 (for 23.98, 59.94 video inputs)
(HD) 720p 60 (for 24, 30, or 60 video inputs)
(SD) 625i 50 (for 25 or 50 fps video inputs).
(SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

Reference Input

Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75 ohms terminating

HDMI Output

10-bit HDMI v1.4a

Audio I/O

16-Channel embedded SDI audio input
16-Channel embedded SDI audio output
8-Channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal blocks connectors

User Controls

External DIP switch
openGear DashBoard network control software via Windows, macOS or Linux

Power

openGear frame compatible, 3.0 watts max per card

Safe Operating Temperature

0 to 40 deg. C (32 to 104 deg. F)

Safe Storage Temperature

-40 to 60 deg. C (-40 to 140 deg. F) (Power OFF)

Operating Relative Humidity

10-90% noncondensing

Operating Altitude

<3,000 meters (<10,000 feet)

Weight

0.5 lbs (0.23kg)
