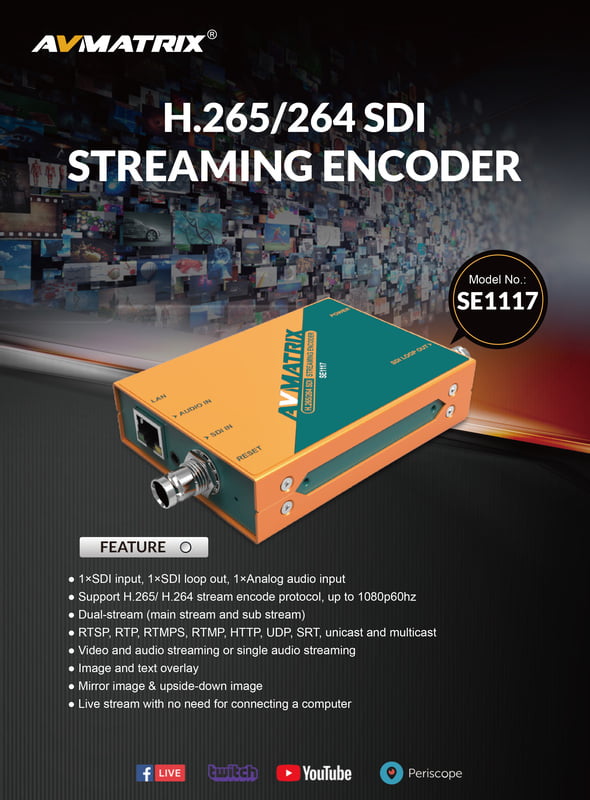

AvMatrix H.265/ H.264 SDI STREAMING ENCODER

Video Input Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI)

Input Video Format

SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps

Audio Input Connectors

1 x 1/8" / 3.5 mm TRS

Embedded Audio Input

SDI

Video Output Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)

Output Video Format

SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps

Audio Output Connectors

None

Embedded Audio Output

SDI

HDR Compatibility

None

Other I/O

1 x RJ45 LAN

Expansion Slots

None

Video IP Encoding

H.264, H.265: 640 x 360 to 1920 x 1080

Audio IP Encoding

AAC, G.711, MP3, MP2

Power Connector

1 x Barrel (12 VDC) Input

Power Consumption

5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 158°F / -20 to 70°C

Dimensions

4.1 x 3 x 1" / 104 x 76 x 25 mm

Weight

12 oz / 340 g

Package Weight

Box Dimensions (LxWxH)

6.9 x 6 x 2.9"
