DATAVIDEO SE-500HD - 4-Channel 1080p HDMI Video Presentation Switcher
The SE-500HD 1920 x 1080 4-Channel HDMI Video Switcher from Datavideo features four HDMI inputs and two HDMI outputs, which allow users to connect consumer camcorders, GoPro cameras, HDMI laptops, tablets, and more. It accepts various input resolutions at once, eliminating the need to add converters into the workflow.
Specifications
Video Standard | Full HD & SD |
Video Format | 1080p 50/59.94/60Hz |
Video Processing | HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |

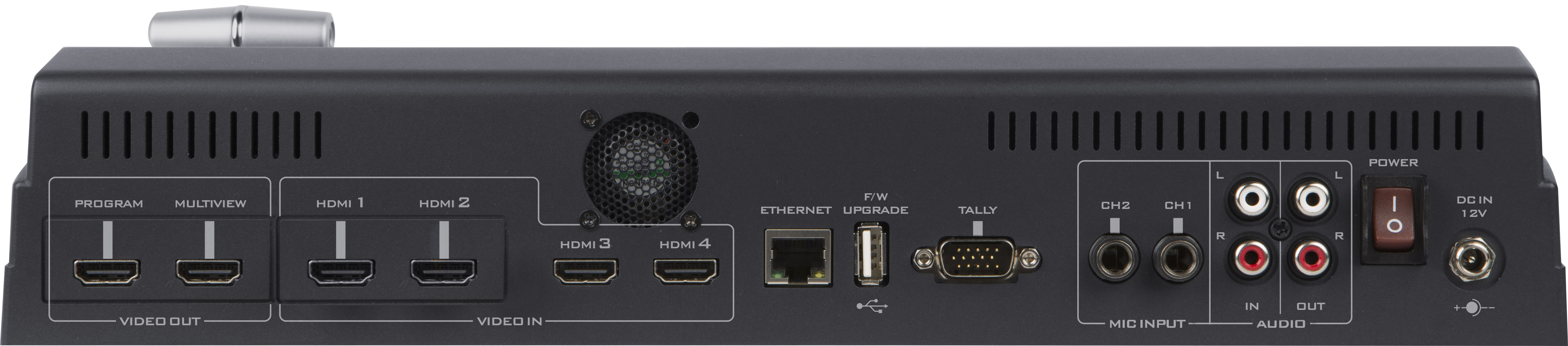

Video Input | 4x HDMI |
Mix HD & SD Source | Yes |
Computer Graphic Interface | 4 via HDMI |
Video Output | 2 x HDMI (1 is MV, 1 is PGM) |
Down-converted Output | Yes |
Built-in Multi-view Monitoring Out | HDMI |
Analogue Audio Input | 1 x Stereo RCA (L/R) |
Analogue Audio Output | 1 x Stereo RCA (L/R) |
Embedded Audio Support | Input 2 channels, Output 2 channels |
A+V Switching | Yes |
USK | Lumakey |
Picture in Picture | 1 |
Effects | FTB, Cut, Wipe with border |
Sync / Reference In/Out | Built-in Genlock (internal) |
Tally Output | 1x D-sub 15pin, dual color |

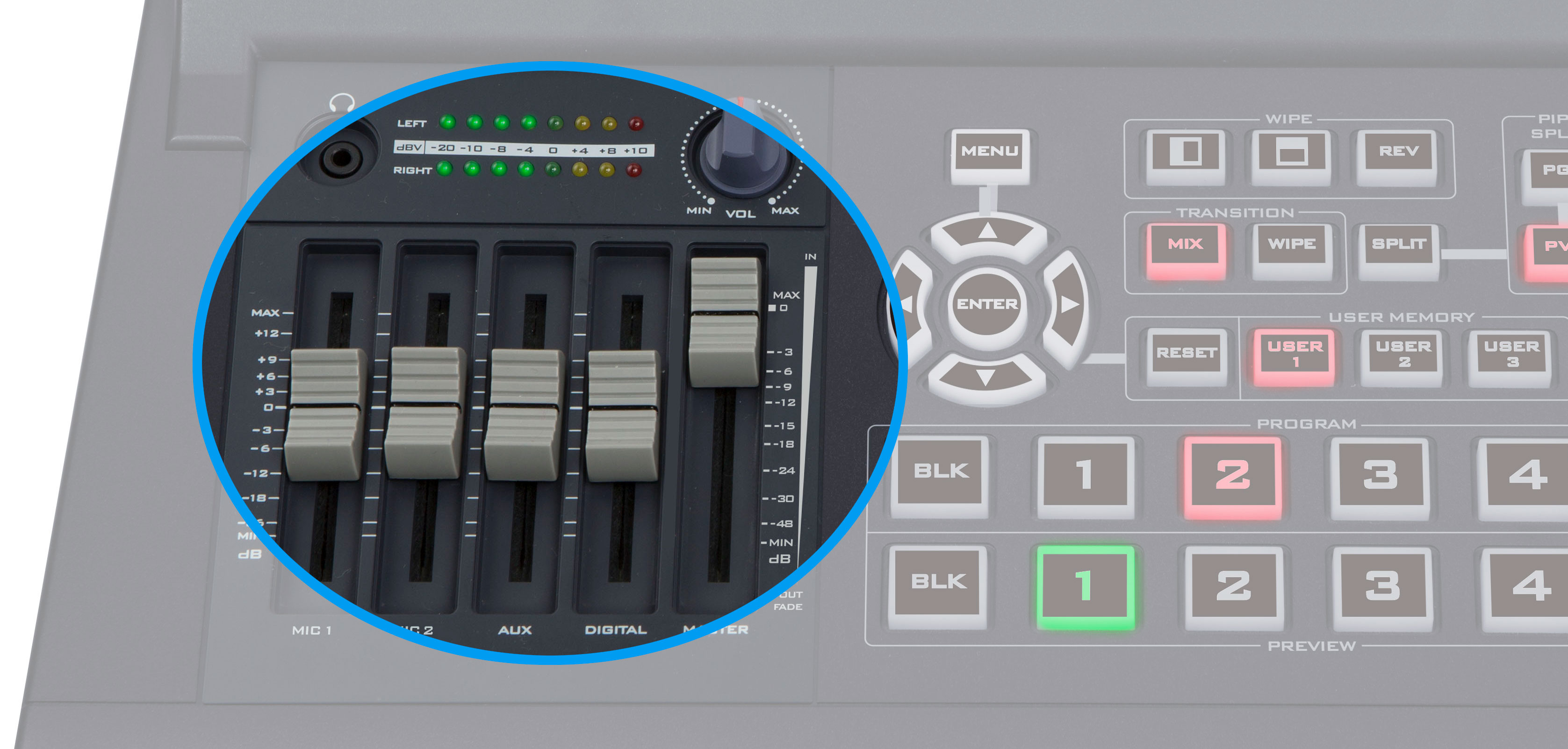

Built-in Audio Mixer | Yes, 4 channels |
Special Features | Built-in video scaler for mixed resolution inputs |
Chassis | Unibody |
Dimension (LxWxH) | 400 x 250 x 82 mm |
Weight | 1.7 kg |
Power | DC 12V, 29W |
Operating Temp. Range | 0~40 °C |
Options | CB-46/47/60/61/62 |
What's in the box | 1 x SE-500HD product |
