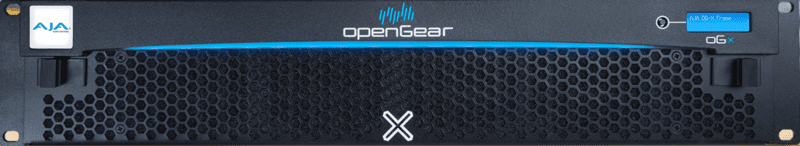

Aja OG-X-FR openGear-compatible 2RU Rackframe
Specification
Frame Controller and Fan
Power | Total Power: 50 W Maximum Maximum Power: +12 V Rail 4 A, 48 W Maximum Power: -7.5 V Rail 0.2 A, 1.5 W |
GFC - 8322
Power | Total Power: 3.9 W Maximum Maximum Power: +12 V Rail 0.2 A, 2.4 W Maximum Power: -7.5 V Rail 0.2 A, 1.5 W |
Reference Input
Number of Inputs | Two Looping |
Level | 1 V pp Nominal |
Signal | Analog Video Sync (Blackburst or Tri-Level), or AES/EBU DARS |
Impedance | 75 Ohms Terminating |
Return Loss | >30 dB to 30 MHz |
Maximum DC on REF Input | ±1 V |
Card Slot
Number of Slots | 20 |
Total Power | 500 W |
Maximum Card Power | High-Density (Split) Rear Module: 15 W per Card, Accommodates Two opengear Cards and Requires Two Slots in the Frame Chassis Standard Rear Module Accommodates One openGear Card and Requires Two Slots in the Frame Chassis: 30 W per Card, or 45 W if the openGear Card Has Integrated Cooling. Double Wide Rear Module: 60 W per Card, or 75 W for a Single Card with Integrated Cooling, or 90 W for a Multi-Slot Assembly with Integrated Cooling and Receiving Power from Two or More Midplane Connectors. |
Dimensions
Dimension (W x D x H) | 2 RU: 19 x 16.82 x 3.5" / 48.3 x 42.7 x 9 cm |
Power
Input | 6.3 A, 650 W |
Outputs | Output 1: 12 V 41.6 A, 500 W Maximum Output 2: -7.5 V 5 A, 37.5 W Maximum Total Sum of Both Outputs not to Exceed 500 W |
Environment
Operating temperature | 32 to 104°F / 0 to 40°C |
Operating Relative Humidity | <90% Non-Condensing |
