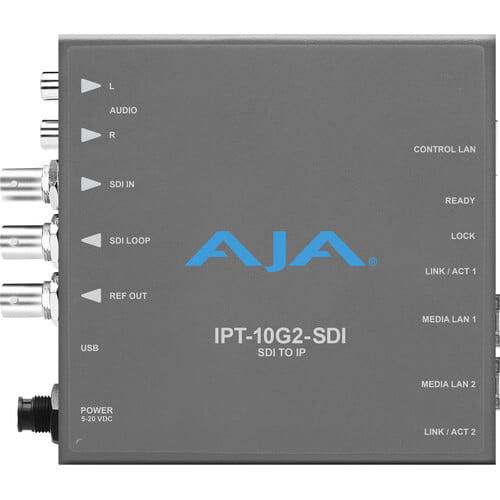

AJA IPT-10G2-SDI Bridging 3G-SDI to SMPTE ST 2110 Video and Audio

Video Formats

• (2k) 2048x1080p 23.98, 24, 25, 29.97*, 30*, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94
• (HD) 1280x720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

*No audio support When Frame Sync is turned on. In bypass, video, and audio are supported

Video Quality

• 10-bit, 4:2:2, uncompressed

Discovery, Registration and Control

• NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
• Ember+ control (no discovery, control only)
• AJA REST API control (discovery via SSDP or MDNS)
• LLDP (Link Layer Discovery Protocol)
• Supported over dedicated management Ethernet port and in-band over media ports

Media Transport Interfaces

• SMPTE ST 2110 (-10, -20, -21, -30)
  • 2x SFP+ Cages - SFPs not included
• Recommended 10 GigE SFP+ modules:
  • Arista Networks SFP-10G-SR Compatible 10GBASE-SR
  • Fiberstore SFP-10GSR-85 10G SFP+ 850nm
  • Finisar FTLX1471D3BCL (for single mode 1310nm)
  • Mellanox MFM1T02A-SR 850nm 10G

Note: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input Digital

• 1x 3G SDI BNC (single source, with loop through)
  • Up to 1080 60p, 4:2:2, 10-bits/pixel, YCbCr

Audio Input Digital

• Up to 16-channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Input Analog

• 2x RCA analog audio
  • Levels at -10 dBu (nominal)
  • Can only select audio channels 1-8

Video Output IP

• SMPTE ST 2110
  • Single video channel output
  • SMPTE ST 2022-7 dual stream output for hitless switching
  • Tx support for Narrow, Gapped Mode

Audio Output IP

• SMPTE ST 2110
  • Up to 16-channels audio, 24-bit per channel, 48 kHz synchronous
  • 1 ms or 125 µs packet interval

Reference

• 1x BNC
  • Reference Out connector generates an analog/tri-level reference output synchronized to the PTP clock
  • Used to lock baseband sources/devices to PTP, so video arriving at the IP transmitter is properly timed

IP Clock

• PTP support compliant with PTP PTPv2 / IEEE 1588-2008
• SMPTE ST 2059-1 compliant

User Interface

• 1x RJ-45 for 10/100/1000 Base-T Ethernet
  • Web and REST clients supported for remote network setup and configuration
• 1x USB 2.0 Mini-B connector
  • AJA eMini-Setup supported for network setup and configuration via local desktop computer
• Web and REST configuration is also supported in-band over media ports

Size (w x d x h)

• 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• 5-20 VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
