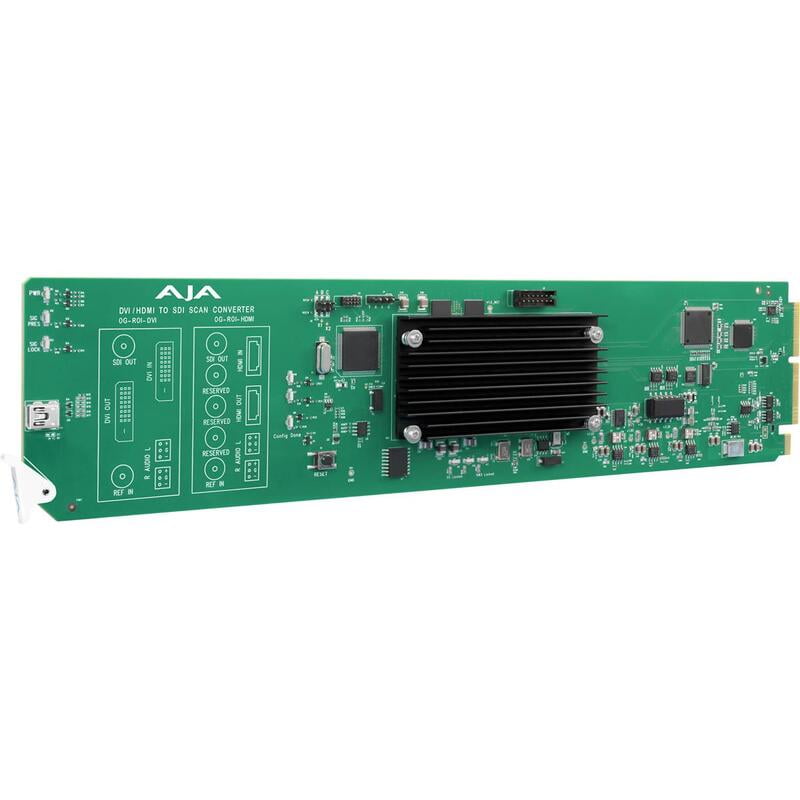

Aja OG-ROI-DVI openGear DVI to 3G-SDI Scan Converter
Video Input Formats
Computer Signals:
WUXGA (1920 x 1200) 60 Hz max
VGA (640 x 480) minimum
Video Signals:
(HD) 1920 x 1080i 50, 59.94
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i, 525i
(SD) 580p, 480p
Note: Frame rates limited by the 166 mHz max pixel rate of the DVI receiver.
Video Output Formats
(HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97
Color Range
Full
SMPTE
Reference Source
Free Run
Card Ext Ref
OG Frame Ref 1
OG Frame Ref 2
Reference Input
Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75 ohm terminating
Video Input
1x DVI input connector (with embedded audio, up to 8-channels)
Video Outputs
DVI
1x HDMI loop through connector (with embedded audio, up to 8-channels)
SDI
3G-SDI, SMPTE-259/292/424, 1x BNC
Audio Inputs
2-channel balanced analog audio inputs, 2x 3-pin terminal blocks connectors
Audio Output
SDI embedded audio, 24-bit, 2-channel or 8-channel
User Interface
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
openGear standard form factor, front slot and rear card. Two slots required for each card
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 12.0 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
