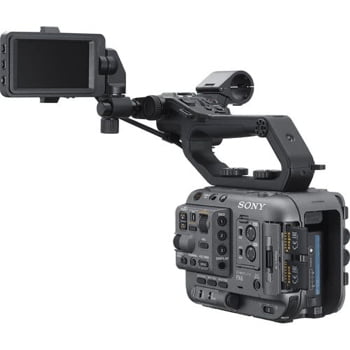

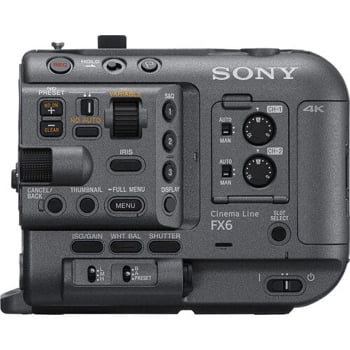

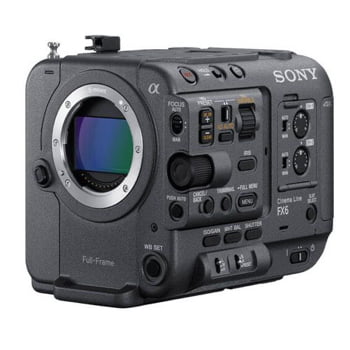

Sony PXW-FX6 Full-Frame Cinema Camera (Body Only)

Sensor Size

Full-Frame

Sensor Type

CMOS

Sensor Resolution

Actual: 12.9 Megapixel
Effective: 10.2 Megapixel

Color Filter

Bayer

Shutter Type

Rolling Shutter

ISO

800 (Native)
12,800 (Expanded)
320 to 409,600 (Expanded)

Gain

-3 to 30 dB

Advertised Dynamic Range

15 Stops

Lens Mount

Sony E-Mount

Lens Communication

Yes

Interchangeable Lens Mount

None

Shutter Speed

1/1 to 1/8000 sec

Built-In ND Filter

1/4 to 1/128 Stop Electronic ND Filter

Built-In Microphone Type

Stereo
Mono

Media/Memory Card Slot

Dual Slot: CFexpress Type A / SD

Variable Frame Rates

DCI 4K: 1 to 60 fps
UHD: 1 Up to 120 fps
1080p: 1 Up to 240 fps

Recording Modes

XAVC-I 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (240 to 600 Mb/s)
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s)
1920 x 1980p at 23.98/25/29.97/50/59.94 fps (89 to 222 Mb/s)
XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s)
XAVC-L 4:2:2 10-Bit:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)

Gamma Curve

HDR-HLG, S Cinetone, Sony S-Log, Sony S-Log 3

Audio Recording

AVC-Intra: 2/4-Channel 24-Bit 48 kHz LPCM Audio
AVC-Long: 2/4-Channel 24-Bit 48 kHz LPCM Audio

Still Image Support

Not Specified by Manufacturer

Raw Output

SDI/BNC In Raw Mode:
4096 x 2160 16-Bit at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160 16-Bit at 23.98/25/29.97/50/59.94 fps

Video Connectors

1 x BNC (12G-SDI) Output
1 x HDMI Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Timecode Input/Output
1 x USB Type-C
1 x USB Micro-B
1 x 2.5 mm Control

Wireless Interfaces

2.4 GHz, 5 GHz Wi-Fi

Display Type

Included External Touchscreen LCD

Size

3.5"

Resolution

1280 x 720 (2,760,000 Dot)

EVF

Optional, Not Included

Battery Type

Sony BP-U Series

Power Connectors

1 x Barrel (19.5 VDC) Input

Power Consumption

18 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

6 x 4.6 x 4.5" / 153 x 116 x 114 mm (Without Protrusions)

Weight

2 lb / 890 g

Package Weight

7.99 lb

Box Dimensions (LxWxH)

12.4 x 11.6 x 10.2"
