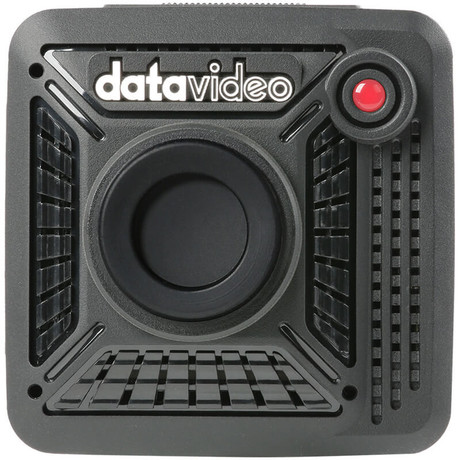

Datavideo BC-15C 4K CS Mount POV Camera
$869.00
Tags:
User can install a CS Mount camera lens to the BC-15C/BC-15CN, or use a C Mount camera lens with the bundled 5mm CS-C camera lens adapter ring. User can have a wide range of visual expression by using different lenses for the BC-15C/ BC-15CN.
Product Details
SPECIFICATION
Model Number
BC-15C
Video format/Resolution
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
Image Sensor
1/2.3" CMOS
Effective Pixels (approx.)
12.3Mega Pixels
S/N Ratio
50 dB
Min. Illumination
0.5Lux (F1.0, AGC ON)
* depend on Lens
* depend on Lens
Electronic Shutter
1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
Zoom Ratio
2x Digital Zoom
Optical Zoom depend on lens
Optical Zoom depend on lens
Gamma Control
Standard / Mode1 / Mode2 / Mode3
Iris Control
DC IRIS supported
* depend on Lens
* depend on Lens
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock
AGC / Gain Control
Auto(AGC) / Manual / Lock
(Follow Exposure Mode)
(Follow Exposure Mode)
HDR/WDR
WDR
Mirror / Flip Image
Yes
Focus Mode
Full Manual
Panning / Tilting Range
----
Panning / Tilting Speed
----
Preset
----
Focal Length
* depend on Lens
Field of View (Horizontal, Wide)
* depend on Lens
Image Compensation
Auto
Video Output
HDMI 2.0 x1
RJ45 x1
RJ45 x1
Audio Input
3.5mm Line in/Mic in (Stereo)
Tally LED
Dual color (Red, Green)
Lens Filter
IR cut built-in
Control Protocol
DVIP
Remote Control Interface
RJ-45: for IP control (DVIP)
Video Compression Format
H.264, H.265
Audio Compression Format
AAC
Audio Bitrate
128Kbps
HD IP Interface
10/100/1000M
Streaming Protocols
RTMP(S), SRT
First Stream Supported Resolution
1920x1080
1280x720
1024x576
960x540
640x480
640x360
1280x720
1024x576
960x540
640x480
640x360
Video Bitrate
1Mbps ~ 7Mbps
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
60Hz: 1-60fps
POE
IEEE802.3af
F/W Update
Ethernet
IR Control
----
Camera Control Unit
RMC-300 series/BC View Assist APP
Tripod Mount
1/4-20 UNC
Color
Black
Dimension (LxWxH)
77mm (W) x 82mm (D) x 78mm (H)
Weight
204 g
Operating Temp. Range
0~40 °C
Power
DC 12V 9W
What's in the Box
1 x BC-15C Main Unit
1 x CS-C Lens adaptor ring
1 x DC 12V power adaptor
1 x CS-C Lens adaptor ring
1 x DC 12V power adaptor
