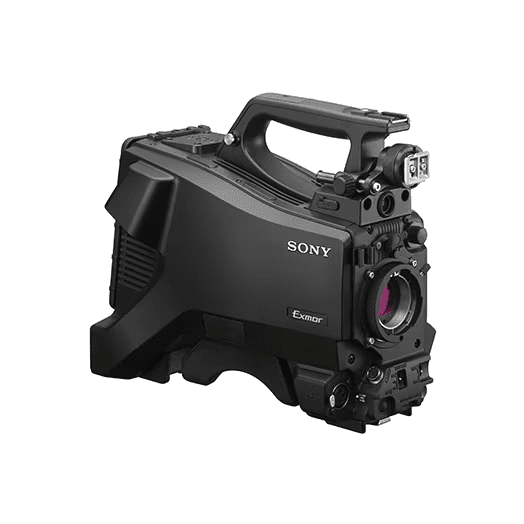

Sony HXC-FZ90HL Studio Camera System Portable studio camera for HD production w/o Lens (Lemo)
$14,241.00
Tags:
- High image quality for HD and 4K productions - Flexible integration, whatever your camera set-up - Functions designed for easier live productions - Interchangeable Lens - Lemo Fiber Connection - Events, Sports, Studio
Product Details
SPECIFICATION
Sony HXC-FB80 Specs
Image Sensor 3-Chip 2/3" CMOS Sensor Sensor Resolution Effective: 2.46 Megapixel (1920 x 1080) Horizontal Resolution (TV Lines) 1000 TV Lines or More Prism Speed f/1.4 Gain -3 to 12 dB Sensitivity f/12 at 2000 lux 89.9% Reflectance (at 3200K, 59.9 Hz)
f/13 at 2000 lux 89.9% Reflectance (at 3200K, 50 Hz) Signal-to-Noise Ratio 60 dB
LensFocal Length 8.2 to 164mm Optical Zoom Ratio 20x Maximum Aperture f/1.9 Minimum Focus Distance Macro: 0.4" / 1.0 cm
Entire Zoom Range: 35.4" / 90.0 cm Filter Size 82 mm Focus Control Manual Focus
CameraLens Mount B4 Mount Shutter Speed 1/100 to 1/2000 sec (In 60i Mode) Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters Broadcast System Compatibility NTSC, PAL
InterfacesCCU I/O 1 x LEMO SMPTE Video I/O 1 x BNC (HD-SDI) Output
1 x BNC (3G-SDI) Input/Output Audio I/O 2 x XLR 3-Pin Mic/Line Input
1 x XLR 5-Pin Intercom Input/Output
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output Lens Control 1 x 12-Pin Other I/O 1 x BNC (Genlock) Input/Output
1 x D-Sub 9-Pin (RS-232) Control
1 x 20-Pin Viewfinder Output
1 x DIN 8-Pin Control
1 x USB-A Data Display Type Included External LCD Display Size 3.5"
EVFDisplay Type LCD Size 3.5" Resolution 960 x 540
PowerPower I/O 1 x XLR 4-Pin (10.5 to 17 VDC) Input Power Consumption 19 W
EnvironmentalOperating Temperature 14 to 113°F / -10 to 45°C Storage Temperature -4 to 140°F / -20 to 60°C
GeneralAccessory Mounting Thread 1 x 1/4"-20 Female on Included Handle
1 x on Included Handle Tripod Mount VCT-14 Dimensions (W x H x D) 22.5 x 17 x 11.6" / 571 x 433 x 295 mm (With Protrusions) Weight 15 lb / 6.8 kg
| Image Sensor | 3-Chip 2/3" CMOS Sensor |
| Sensor Resolution | Effective: 2.46 Megapixel (1920 x 1080) |
| Horizontal Resolution (TV Lines) | 1000 TV Lines or More |
| Prism Speed | f/1.4 |
| Gain | -3 to 12 dB |
| Sensitivity | f/12 at 2000 lux 89.9% Reflectance (at 3200K, 59.9 Hz) f/13 at 2000 lux 89.9% Reflectance (at 3200K, 50 Hz) |
| Signal-to-Noise Ratio | 60 dB |
Lens
| Focal Length | 8.2 to 164mm |
| Optical Zoom Ratio | 20x |
| Maximum Aperture | f/1.9 |
| Minimum Focus Distance | Macro: 0.4" / 1.0 cm Entire Zoom Range: 35.4" / 90.0 cm |
| Filter Size | 82 mm |
| Focus Control | Manual Focus |
Camera
| Lens Mount | B4 Mount |
| Shutter Speed | 1/100 to 1/2000 sec (In 60i Mode) |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Broadcast System Compatibility | NTSC, PAL |
Interfaces
| CCU I/O | 1 x LEMO SMPTE |
| Video I/O | 1 x BNC (HD-SDI) Output 1 x BNC (3G-SDI) Input/Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line Input 1 x XLR 5-Pin Intercom Input/Output 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Lens Control | 1 x 12-Pin |
| Other I/O | 1 x BNC (Genlock) Input/Output 1 x D-Sub 9-Pin (RS-232) Control 1 x 20-Pin Viewfinder Output 1 x DIN 8-Pin Control 1 x USB-A Data |
| Display Type | Included External LCD |
| Display Size | 3.5" |
EVF
| Display Type | LCD |
| Size | 3.5" |
| Resolution | 960 x 540 |
Power
| Power I/O | 1 x XLR 4-Pin (10.5 to 17 VDC) Input |
| Power Consumption | 19 W |
Environmental
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Accessory Mounting Thread | 1 x 1/4"-20 Female on Included Handle 1 x on Included Handle |
| Tripod Mount | VCT-14 |
| Dimensions (W x H x D) | 22.5 x 17 x 11.6" / 571 x 433 x 295 mm (With Protrusions) |
| Weight | 15 lb / 6.8 kg |
