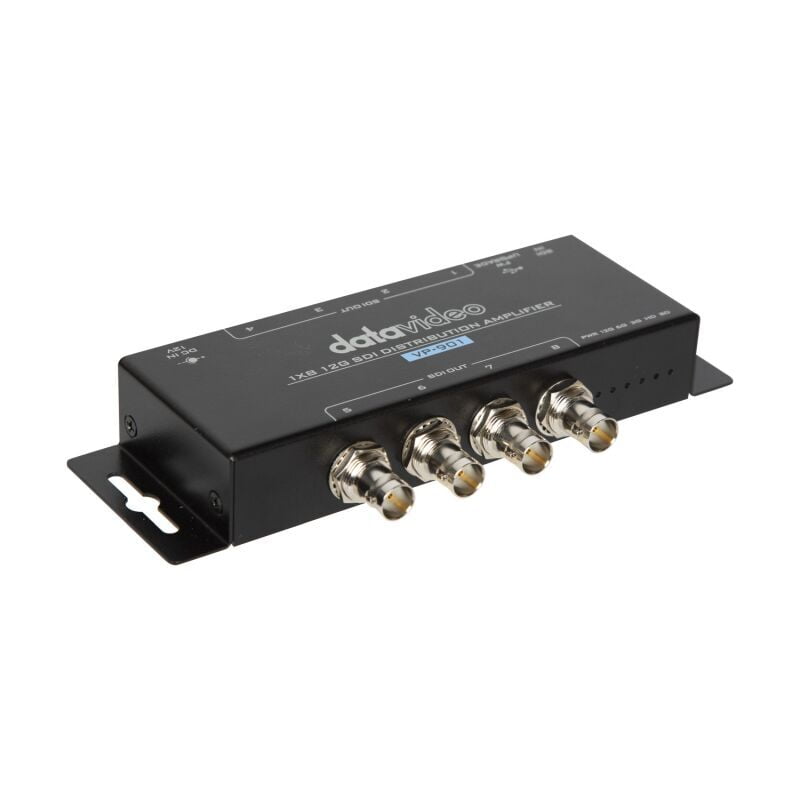

Datavideo VP-901 1x8 up to 12G SDI distribution amplifier
The VP-901 12G SDI Distribution Amplifier from Datavideo can distribute a single 12G, 4K, HD, or SD-SDI input into eight SDI outputs. It is a reliable video device, which splits an SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to SDI compliant video displays simultaneously. It also supports re-clocking for a clean signal over long cable runs.
Model Number
VP-901
Video Input/Output
Input: 1 x BNC
Output: 8 x BNC
Video Format
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Standard
----
Video Processing
SD/HD/3G/6G/12G-SDI
Video bandwidth
11.88Gpbs & 11.88/1.001Gbps
Audio Format
Support SDI embedded audio
Power
12V DC Jack
Dimension (LxWxH)
167 x 50 x 24 mm
Weight
0.31 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x VP-901 product
1 x AD Switch DC 12V
