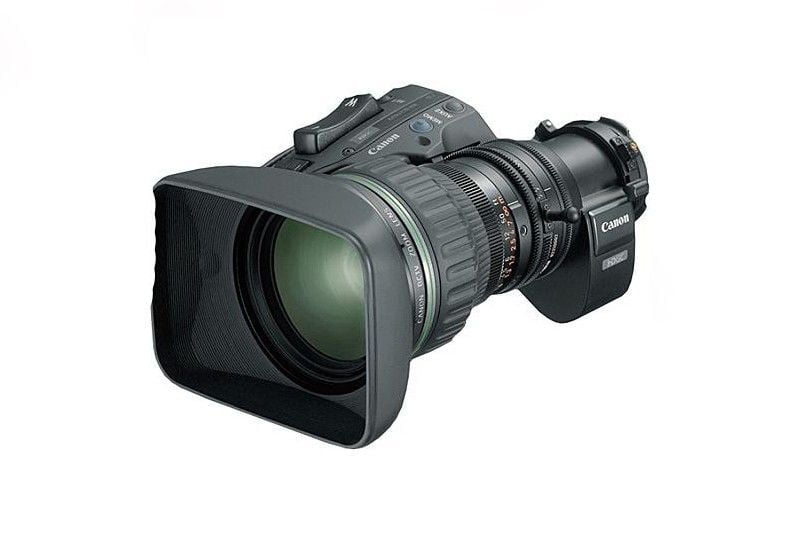

Canon Portable ENG 10x Zoom Lens with Servo Focus & Zoom
$18,088.58
Tags:
The KJ10ex4.5B and the HDgc line of lens have been specifically designed for low cost tapeless HD camcorders and this lens is particularly well suited to HD Reality TV, newsgathering and other low budget HD productions.
Product Details
SPECIFICATION
| Lens Model Number | KJ10ex4.5B IRSE A/IASE A | |
| Image Size | 2/3” | |
| Zoom Ratio | 10x | |
| Built-in Extender | 2.0x | |
| Range of Focal Length (with Extender) | 4.5 ~ 45mm 9 ~ 90mm | |
| Maximum Relative Aperture (with Extender) | 1:1.8 at 4.5 - 34.5mm 1:2.35 at 45mm 1:3.6 at 9 - 68.9mm (2.0x) 1:4.7 at 90mm (2.0x) | |
| Angular field of view (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 88.7° x 72.5° at 4.5mm 11.2° x 8.4° at 45mm 52.1° x 40.3° at 9mm (2.0x) 5.6 ° x 4.2° at 90mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 93.7° x 61.9° at 4.5mm 12.2° x 6.9° at 45mm 56.1° x 33.4° at 9mm (2.0x) 6.1° x 3.4° at 90mm (2.0x) | |
| Minimum Object Distance (M.O.D.) from lens front | 0.3m (10mm with Macro) | |
| Object Dimensions at M.O.D. (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 67.9 x 50.9cm at 4.5mm 5.9 x 4.4cm at 45mm 34.0 x 25.5cm at 9mm (2.0x) 3.0 x 2.2cm at 90mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 74.1 x 41.7cm at 4.5mm 6.4 x 3.6cm at 45mm 37.0 x 20.8cm at 9mm (2.0x) 3.2 x 1.8cm at 90mm (2.0x) | |
| Size (W x H x L) | 168.2 x 110.6 x 237.7mm | |
| Weight | IRSE A 1.83 kg (4.04lbs) IASE A 1.91kg (4.22lbs) |
