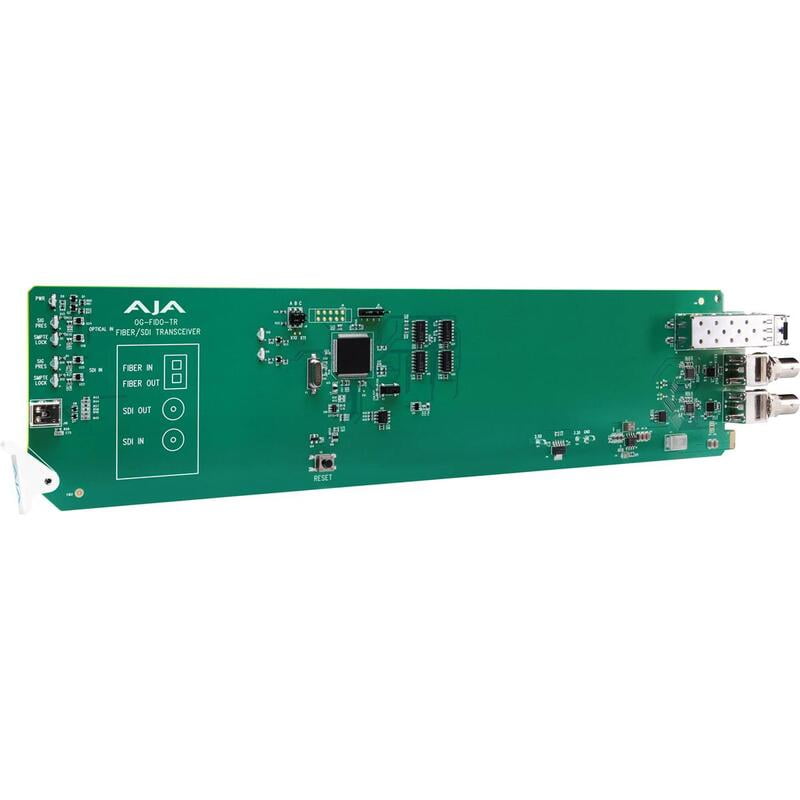

Aja OG-FIDO-2R-MM OpenGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
Video Formats
150 Mbps - 3 Gbps, format agnostic
Video Input Digital
2-Channel independent Multi-Mode LC Fiber Inputs, SMPTE-297
Nominal Wavelength: 850 nm
Optical Sensitivity: -15dBm (min)
Video Output Digital
2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
User Interface
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 2.5 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
