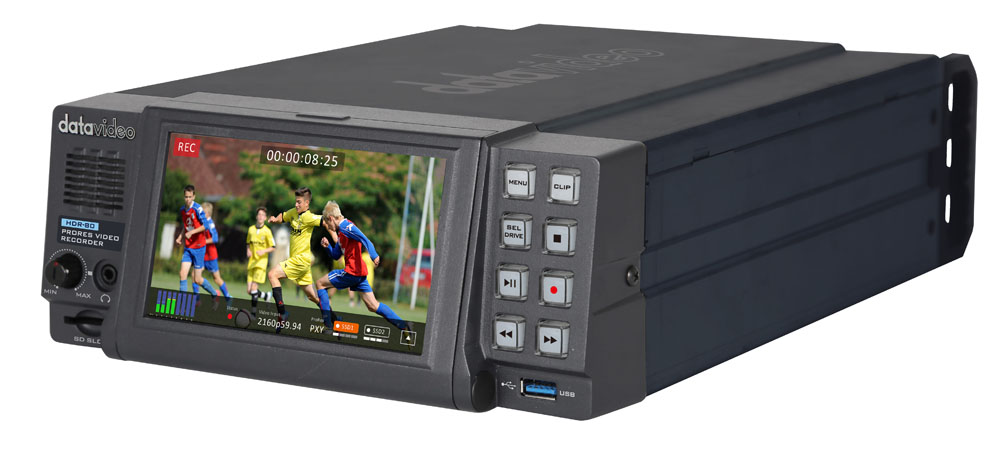

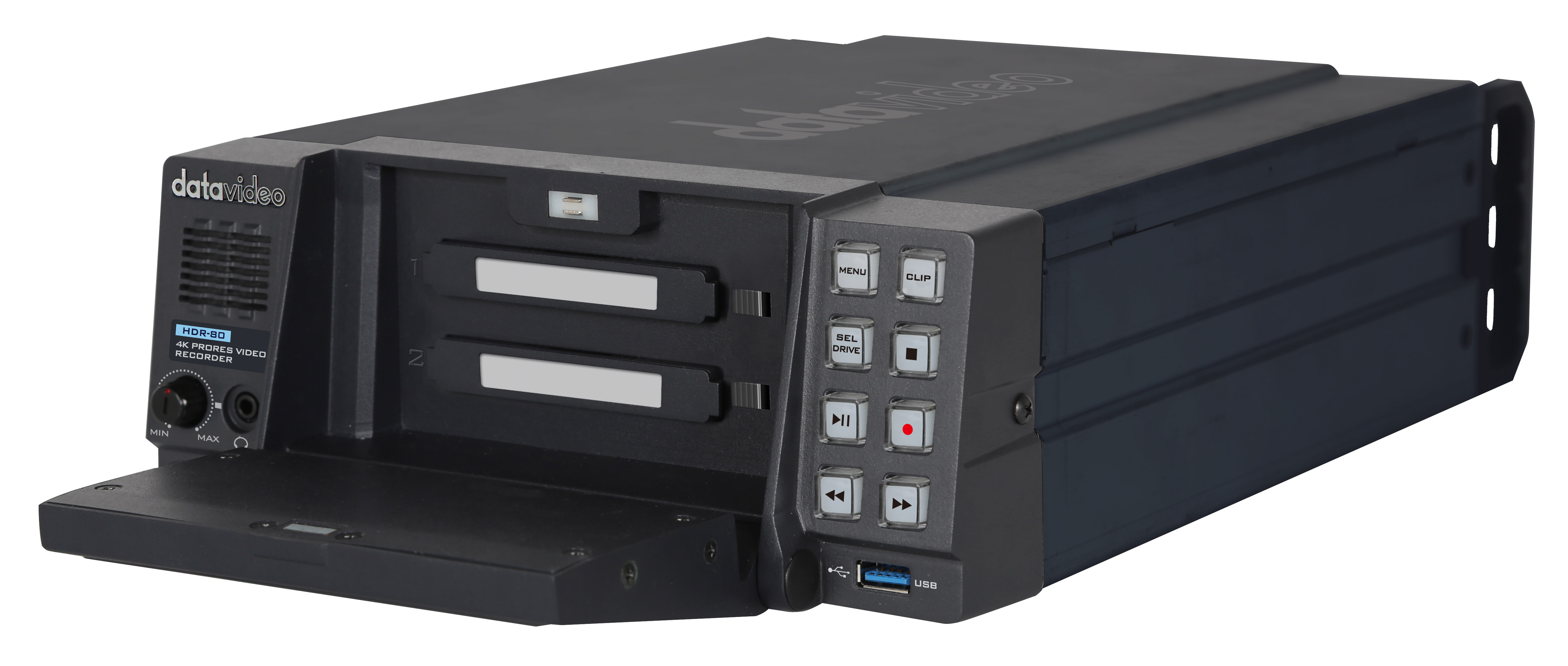

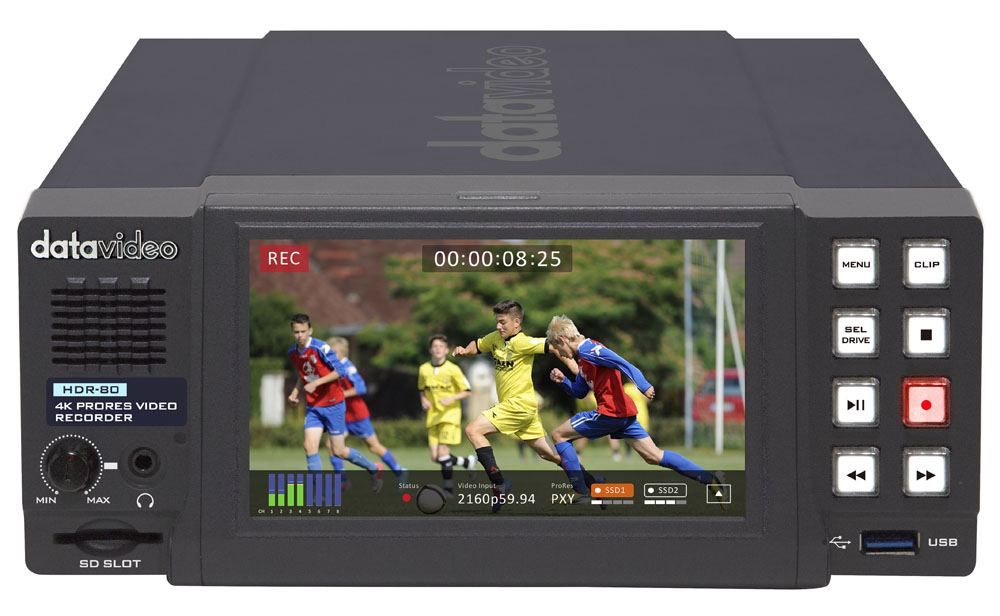

DATAVIDEO HDR-80 - ProRes 4K Video Recorder- Desktop

Video Standard

UHD & HD

Video Format

2160p 23.98/24/25/29.97/30/50/59.94/60Hz
1080p 23.98/24/25/29.97/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz

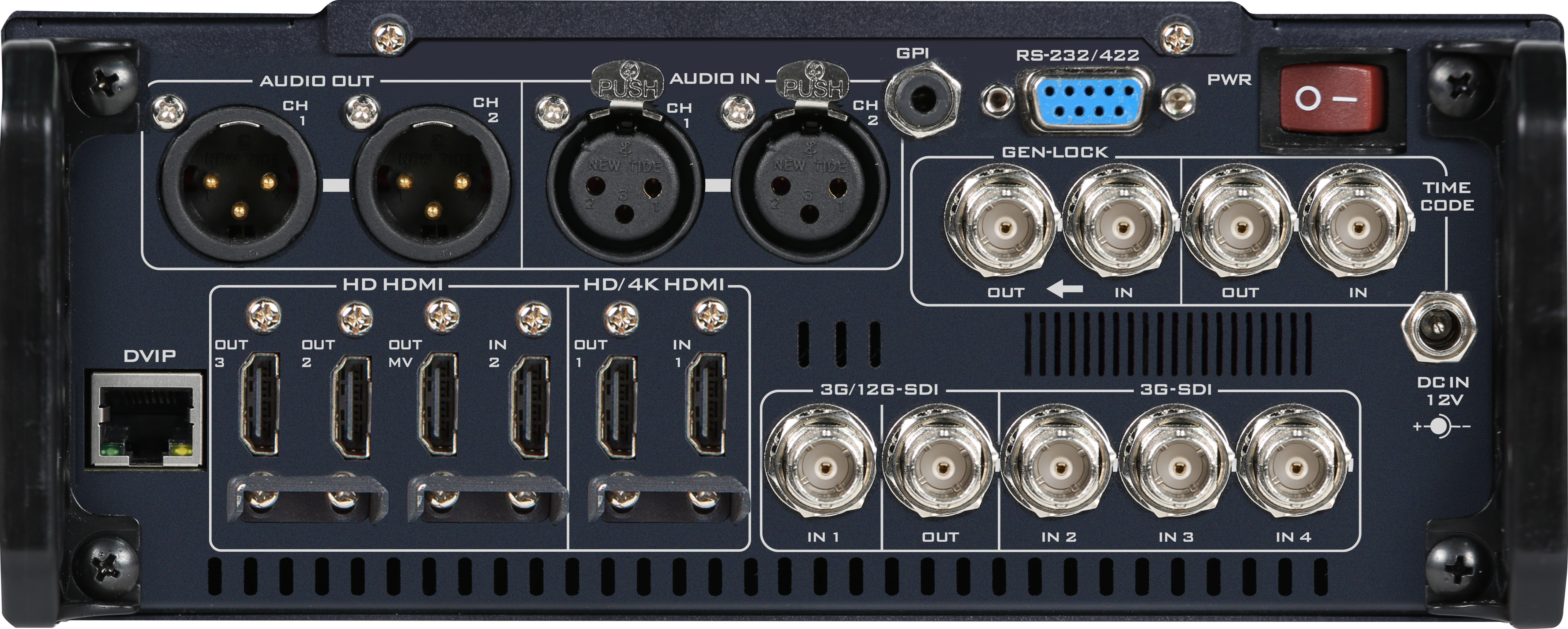

Supported Video Input Signal

1x 3G/12G-SDI
3x 3G-SDI
1x HDMI 2.0
1x HDMI 1.4

Monitoring / Playback Output

1x 3G/12G-SDI
1x HDMI 2.0
3x HDMI 1.4

Analog Audio Input

 2x Balanced XLR

Analog Audio Output

 2x Balanced XLR

Embedded Audio

SDI Input / Output (8CH )
HDMI Input / Output (8CH)

Storage Medium

2.5” SSD

Multi-channel Recording

Yes, 4-CH HD

Estimated Record Time (min per 10GB)

HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ)
3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)

Recording Media

2x 2.5" Removable SSD

Storage File System

exFAT

Recorded File Format

QuickTime .MOV

Video Recording Bit Rate / Color Sampling

ProRes 422 HQ
ProRes 422
ProRes 422 LT
ProRes 422 Proxy

Audio Recording Format

Uncompressed PCM
Sampling rate 48KHz 24bit

Preview Display

5" Touch LCD

Time Code In / Out

Yes

External Sync / Genlock

Black Burst & Tri-level with loop thru

External Control

RS-232/422 (Dsub 9pin),
DVIP (Ethernet),
GPI (3.5Ø phone jack)

Dimension (LxWxH)

313 x 220 x 97 mm

Weight

2.8 kg

Operating Temp. Range

0~40 °C

Power

DC 12V
