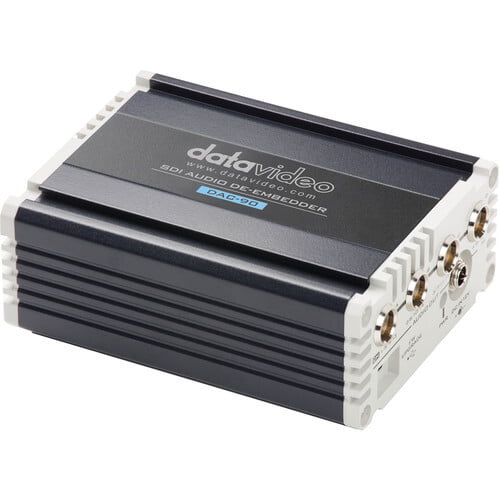

The SDI Audio De-Embedding Box from Datavideo allows the user to de-embed 16 analog audio signals (four at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p60 video format and automatically detects and switches between different formats.
Specification
Interface
SDI Video Input | 3G/HD/SD SDI x 1 |
SDI Video Output | 3G/HD/SD SDI x 1 (Re-clocked Loop through) |
Analog Audio Output | Mini XLR (Balanced) x 4 |
Audio Indicators | Power LED x 1 Audio Level LED: 4 rows |
Updates and Configuration | Mini-USB x 1 |
Standards
SDI Format Support | SD: |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M-AB ITU-R BT.656, ITU-R BT.1120-6 |
SDI Video Rates | SDI video connections are switchable between standard definition and high definition |
SDI Video Sampling | 4:2:2 / 4:4:4 |
SDI Audio Sampling | 24-bit (SD 20-bit), 48 kHz |
SDI Color Precision | 4:2:2 / 4:4:4 (8/10/12-bit) |
SDI Color Space | YUV, RGB |
SDI Auto Switching | Automatically detects SD, HD, 3G |
Audio Level | SMPTE and EBU switchable |
General
Settings Control | DIP Switch |
Power Supply | 12 VDC |
Operating Temperature | 32 to 122°F (0 to 50°C) |
Operating Humidity | 10 to 90% (noncondensing) |
Certification | CE, FCC |
Dimensions (W x H x L) | 3.3 x 0.2 x 4.4" (8.5 x 4.5 x 11 cm) |
Weight | 0.81 lb (0.37 kg) |
