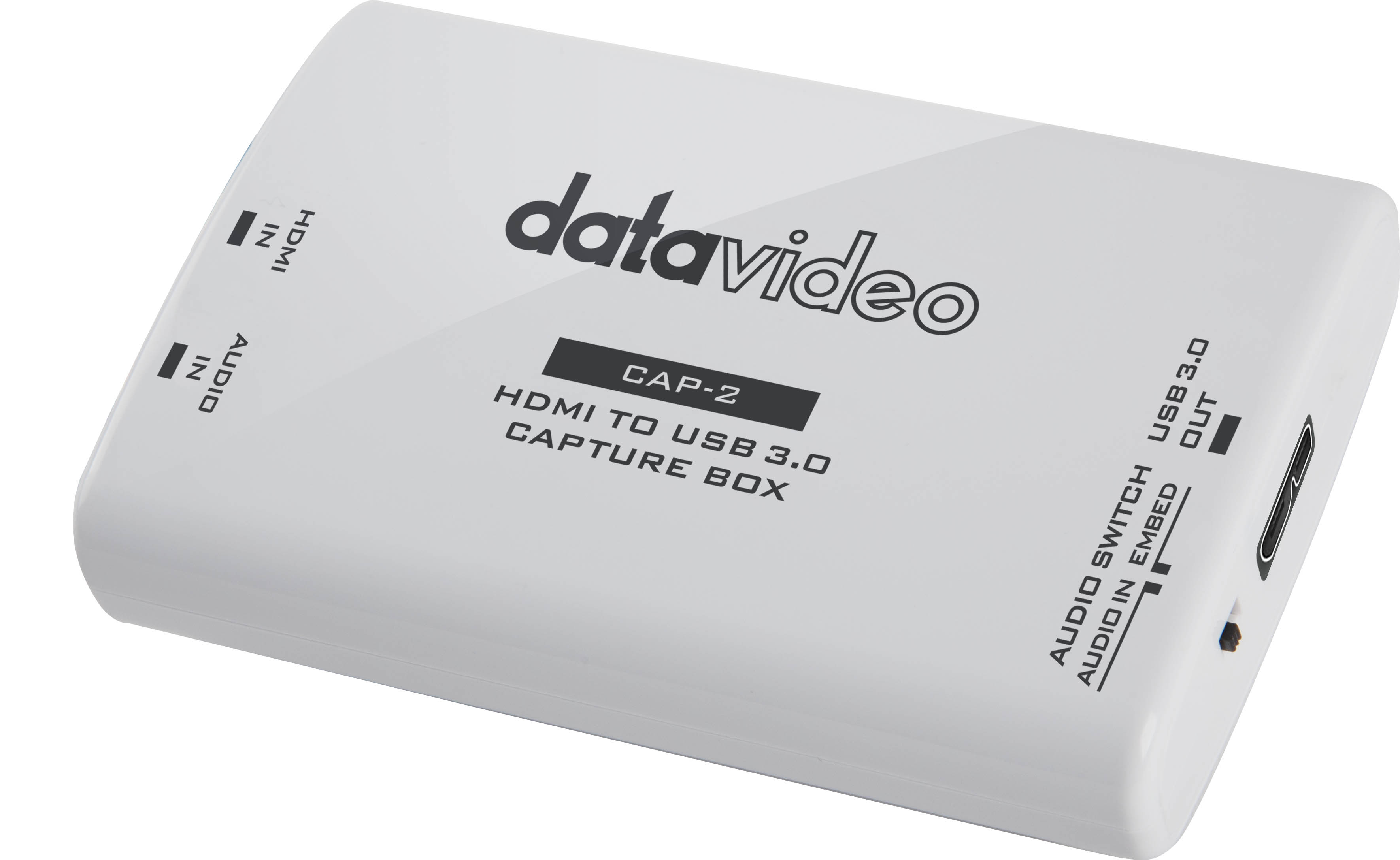

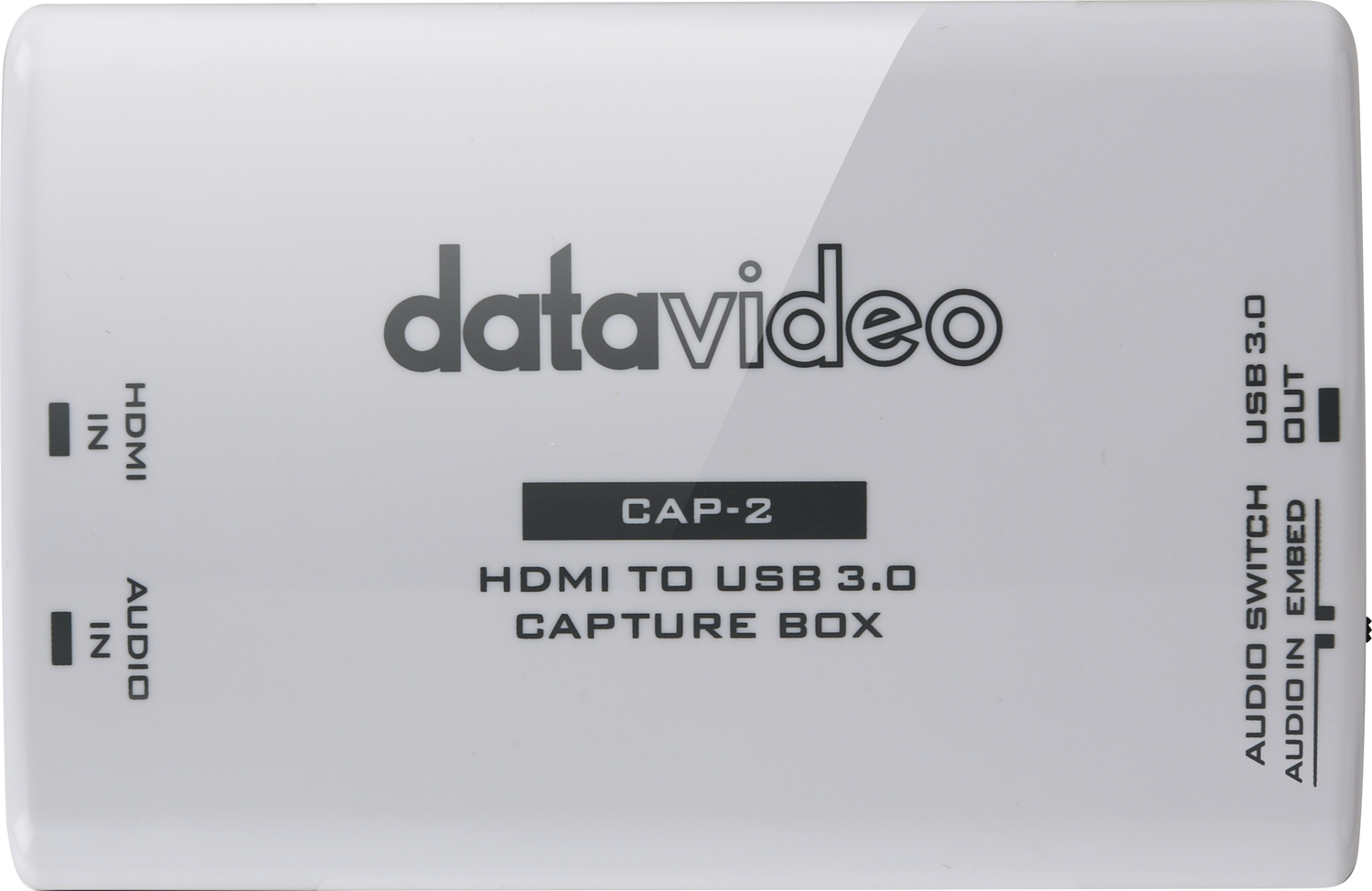

DATAVIDEO CAP-2 - HDMI to USB 3.0 Capture Box

Input

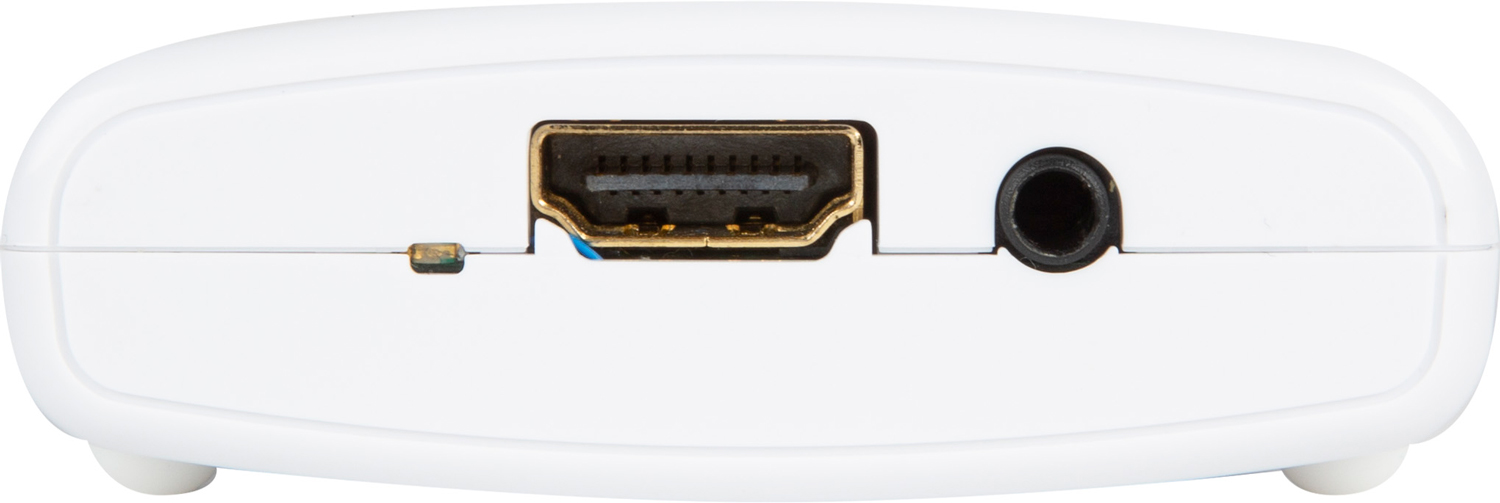

1x HDMI

Output

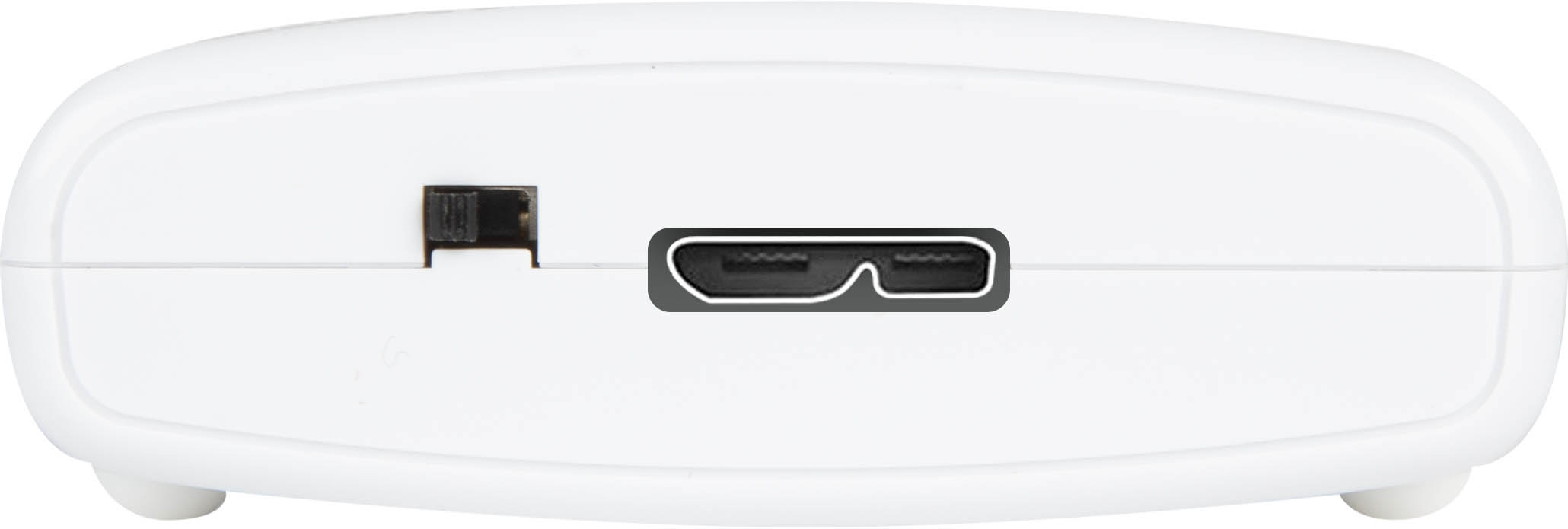

1x USB 3.0 (Micro B)

Input Video Bandwidth

150MHz (pixel clock rate)

Output Video Bandwidth

Up to 350Mbps (USB)

Supported Input Video Formats

Supported Output Video Formats

1920 x 1080p 60/50/30/25/24
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60

Audio Input

HDMI Embedded Audio & 3.5 mm stereo in

Audio Support

2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output

Capture Video Format

YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

Via USB

Firmware update

USB Port

Power Consumption

2W

Operation Temperature

0~40°C

Storage Temperature

-20~60°C

Humidity

20~90% RH

Minimum System Requirement

• Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
  Note: The driver is required for Windows 7 OS
• OS X (10.10 or above)
• Linux Ubuntu 14.04
• PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
• Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher"

Dimension (LxDxH)

105 x 68 x 23 mm

Weight

70g

What's in the Box

1 x CAP-2
1 x Thank You Card
1 x USB 3.0 Cable
