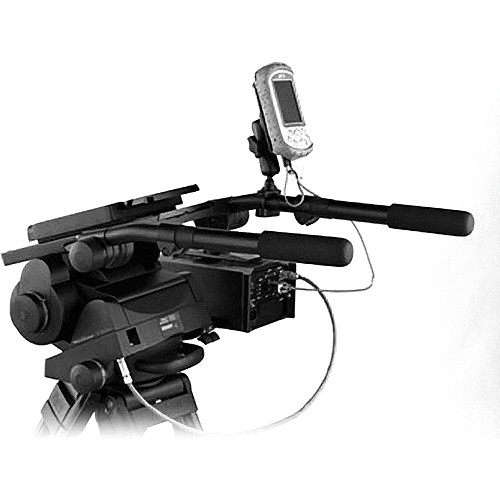

Vinten Vector 750i Head
The Vinten Vector 750i Pan and Tilt Head is a pantographic head that supports a load capacity up to 165.3 lb (75 kg). Allowing the semi automatic setup, slide plate tracking, and kinematic compensation, the head ensures stable and accurate placement of virtual graphics into the live environment when used with a VRI box.
Specification
Height | 10" (25.5 cm) |
Length | 14" (35.5 cm) |
Width | 13.5" (35 cm) |
Capacity | 165.3 lb (75 kg) |
Tilt Range | ±52° ( 165.3 lb / 75 kg) |
Pan Resolution | 1.8 million counts per 360° |
Tilt Resolution | 1.8 million counts per 360° |
Power Requirements | 5 VDC ± 10% |
Platform Adjustment | +2.2 to -4.9" (+5.5 to -12.5 cm) |
Pan Bar | Single telescopic |
Camera Fixing | EFP Quickfit Automatic Adaptor [3460-3] |
Levelling Bubble | Illuminated |
Drag Knobs | Calibrated |
Counterbalance | Fully variable with digital readout |
Base Fixing | 4 bolt flat with Quickfix groove |
Color | Black |
Weight | 39.5 lb / 17.9 kg (including wedge adaptor & pan bar) |
