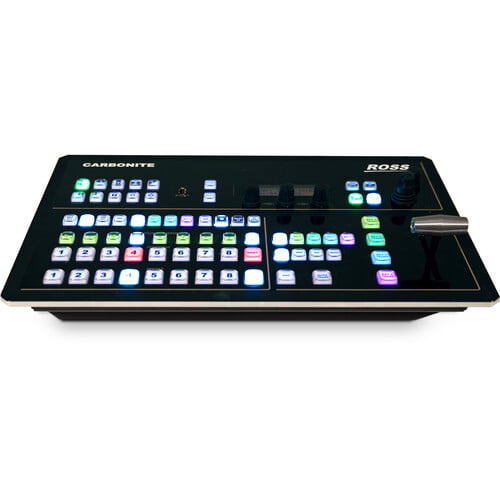

Ross Video CB9-PANEL Carbonite Control Panel
The CB9 Carbonite Control Panel from Ross Video is a hardware control panel designed for use with the separately available Carbonite Black Solo 1 RU engine. Together the two units provide the same functions as the Black Solo All-in-One, but with the flexible positioning of two smaller components. The CB9 can also be used for multipoint control with either the Solo Engine or the Solo All-in-One. Connect the control panel to the engine via its Ethernet port, and begin switching your production.
The CB9 control panel has eight switcher source buttons, nine M/E source buttons, and dedicated keyer auto-trans buttons. Use the T-bar fader, and X/Y joystick with a separate Z-axis encoder, for additional control. Buttons feature background PanelGlow illumination, and the ability to customize button colors for quick bus identification.
Key Features
- For Carbonite Black Solo 1 RU Engine
- Ethernet Connection to Engine
- Layout is Identical to Solo All-in-One
- RGB PanelGlow Background Illumination
- 9 x Cross-Points
- Dedicated Keyer Auto-Trans Buttons
- 1 x Multi-Mode T-Bar
- 4 x Full-Function + 1 x Transition Keyer
- Customizable Button Colors
- Compact, Fanless Design
SPECIFICATION
Video
Supported Video Formats | 3G-SDI, HD, SD |
Interface - Rear Panel
Interface | 1 x Ethernet port, connectivity |
Controls
Controls | 1 x Chroma key |
Power
Power | 24 W, 2 A, 12 V |
Input Voltage | 100~120 V, 220~240 V, 47–63 Hz, 1.6 A |
Environmental
Ambient Temperature Range | 32 to 104°F (0 to 40°C) |
Cooling | Passive |
Physical
Dimensions (WxDxH) | 16.2 x 10.1 x 3.4" (41.1 x 25.6 x 8.6 cm) |
Weight | 8 lb (3.63 kg) |
Packaging Info
Package Weight | 13.3 lb (6.0kg) |
Box Dimensions (LxWxH) | 21.1 x 14.2 x 9.9" |
