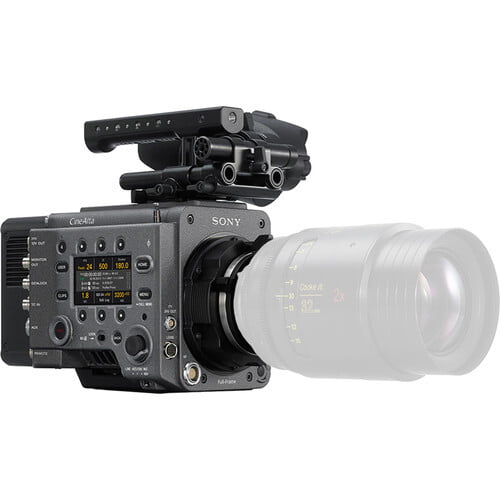

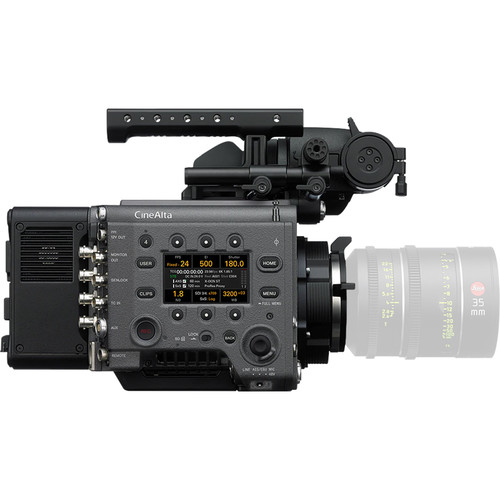

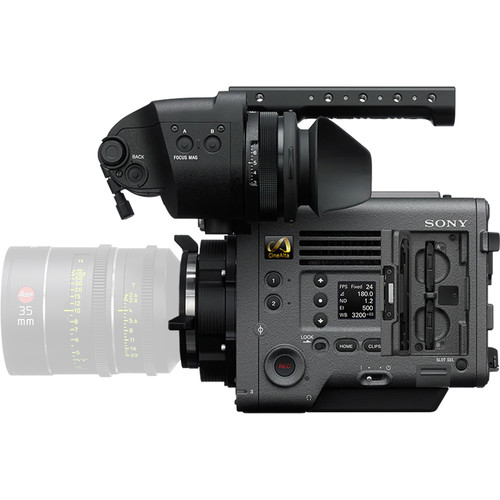

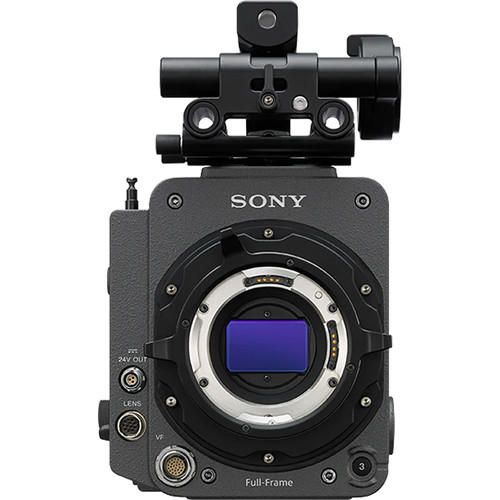

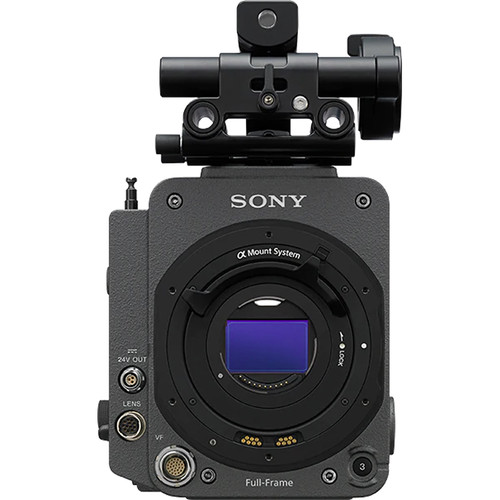

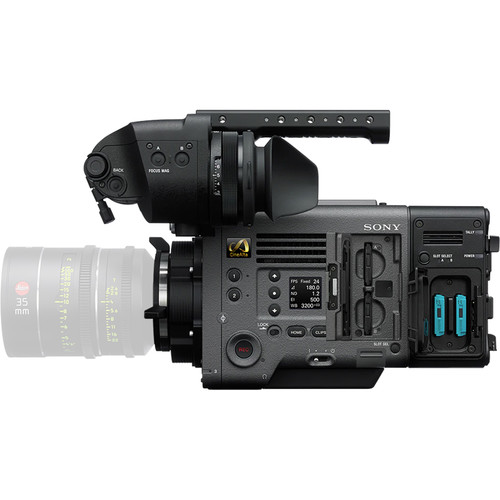

Sony VENICE 6K Digital Motion Picture Camera

Image Sensor Size

36.2 x 24.1 mm (Full-Frame)

Sensor Type

CMOS

Sensor Resolution

Actual: 6042 x 4032 (24.7 MP)Effective: 24.4 MP

ISO

500 (Native)
2500 (Native)

Lens Mount

Sony E-Mount

Lens Communication

Yes, Cooke /i

Built-In ND Filter

Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256) ND Filters

Recording Media

2 x SxS Card Slots
1 x SD Card Slot

Variable Frame Rates

1 to 60 fps

Recording Modes

XAVC:
4096 x 2160p at 23.98/24/25/29.97 fps
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160p at 23.98/25/29.97 fps
3840 x 2160p at 23.98/25/29.97/50/59.94 fps
MPEG HD422:
1920 x 1080p at 23.98/24/25/29.97 fps
1920 x 1080i at 50/59.94 fps
ProRes 422HQ:
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps
1920 x 1080i at 50/60 fps
ProRes 422:
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
ProRes 422 Proxy:
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps

Raw Output

External Recorder In Raw Mode:
4096 x 2160 at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
External Recorder In X-OCN Mode:
6048 x 4032 at 23.98/24 fps
6048 x 3270 at 23.98/24/25/29.97 fps
6048 x 3190 at 23.98/24/25/29.97 fps
6048 x 2530 at 23.98/24/25/29.97 fps
5672 x 3190 at 23.98/25/29.97 fps
4096 x 3432 at 23.98/24/25/29.97 fps
4096 x 3024 at 23.98/24/25/29.97 fps
4096 x 2160 at 23.98/24/25/29.97/50/59.94 fps

Video Connectors

4 x BNC (12G-SDI) Output
1 x BNC (HD-SDI) Monitor Output
1 x HDMI Output

Audio Connectors

1 x 5-Pin XLR Mic/Line/AES/EBU Selectable Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x 26-Pin Viewfinder Output
1 x BNC Timecode Input
1 x BNC Genlock Input
1 x 5-Pin LEMO Timecode Output
1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
1 x RJ45
1 x USB Type-A

Secondary Display

Side: Status Display

EVF

Optional, Not Included

Power Connectors

1 x 4-Pin XLR (12 to 32 VDC) Input
1 x 4-Pin Hirose (12 VDC) Output
1 x 3-Pin Fischer (12 VDC) Output

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

10 x 3/8"-16 Female
8 x 1/4"-20 Female

Dimensions

6.77 x 6.26 x 5.24" / 17.2 x 15.9 x 13.31 cm

Weight

8.6 lb / 3.9 kg

Package Weight

12.81 lb

Box Dimensions (LxWxH)

13.7 x 11.14 x 9.7"
