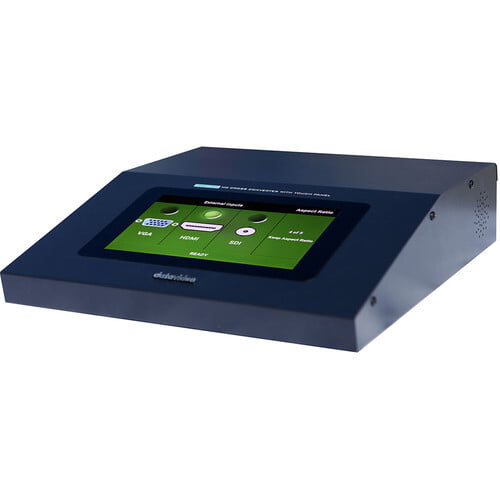

DATAVIDEO DAC-75T -.HD Cross Converter with Touch PanelHD Cross Converter with Touch Panel
The DAC-75T HD Cross Converter Touch Panel from Datavideo provides a built-in 7" touch LCD with an easy-to-use interface. It enables up/down/cross conversion from HDMI, SDI, and VGA video signals with audio input into HDMI or 3G-SDI output. The DAC-75T converter automatically switches between HD and SD video formats depending on video input.
SPECIFICATION
Input
Video Input Connectors
1 x HDMI
1 x DE-15/DB-15 (VGA)
1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format
HDMI / SDI / VGA
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
576p
480p
Audio Input Connectors
2 x RCA Stereo
Input Audio Format
Analog:
Embedded Audio Input
HDMI
Output
Video Output Connectors
2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Output Video Format
HDMI / SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
Embedded Audio Output
SDI: 8-Channel
HDMI: 8-Channel
Standards
HDCP Support
Version 2.0
Hardware
Display Size
7"
Power
Power Consumption
100 to 240 VAC
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Certifications
FCC, as per Manufacturer
Dimensions
11.81 x 11.02 x 2.76" / 300 x 280 x 70 mm
Weight
5.29 lb / 2.4 kg
Video Input Connectors
1 x HDMI
1 x DE-15/DB-15 (VGA)
1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format
HDMI / SDI / VGA
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
576p
480p
Audio Input Connectors
2 x RCA Stereo
Input Audio Format
Analog:
Embedded Audio Input
HDMI
Video Output Connectors
2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Output Video Format
HDMI / SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
Embedded Audio Output
SDI: 8-Channel
HDMI: 8-Channel
HDCP Support
Version 2.0
Display Size
7"
Power Consumption
100 to 240 VAC
Operating Temperature
32 to 104°F / 0 to 40°C
Certifications
FCC, as per Manufacturer
Dimensions
11.81 x 11.02 x 2.76" / 300 x 280 x 70 mm
Weight
5.29 lb / 2.4 kg
