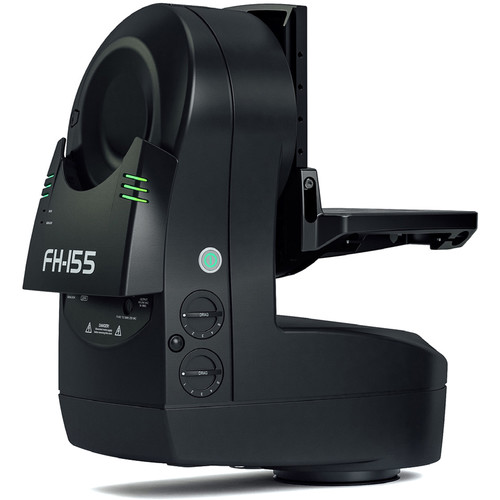

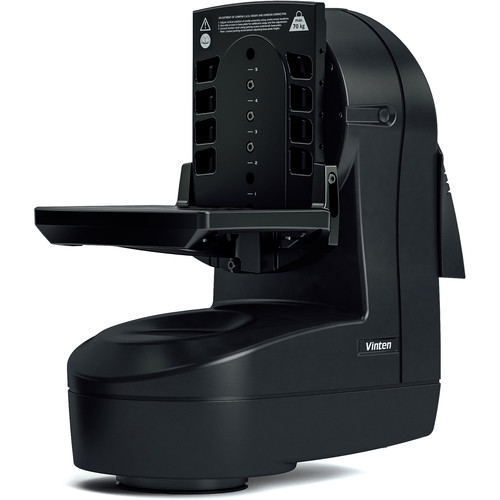

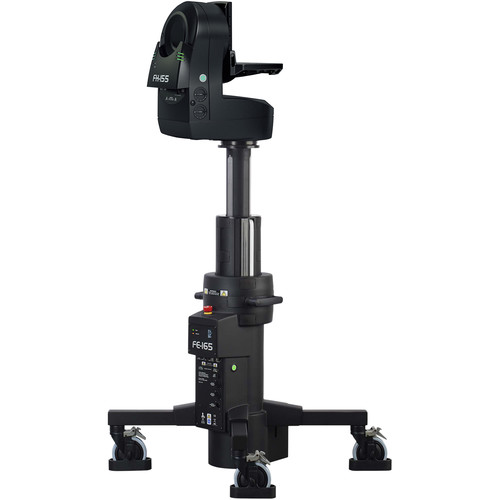

vinten FH-155 Head

$39,119.40
Tags:
70Kg(155lb) payload head, continously adjustable manual operation and robotic mode, integrated PSU, 3 port Ethernet hub, LANC port and lens drive for full servo digital Canon and Fujinon lenses. Includes pan bar mount, two Vision pan bars, 3m ethernet and power cables.


Quantity
Add to Cart
Product Details

Specs

Payload

155 lb / 70.31 kg

Pan & Tilt Range

Pan: 359°
Tilt: ±50°

Drag Control

Continuous Drag Adjustment, Servo Controlled

Angular Speed

Velocity: 0.05 to 60°/s
Acceleration Typical: 60°/s2
Acceleration Peak: 120°/s2

Lens Control

Canon Lenses: Full-Servo
Fujinon Lenses: Full-Servo

Genlock

Black Burst / Tri-Level

Connectors

Power: powerCON
Ethernet: 3 x RJ45
Genlock: 1 x Micro BNC
Aux Port: 26-pin
LANC Port

Shot Recall Repeatability

±60 Arcseconds (±0.016°)

System Resolution / Accuracy

22-bit, >0.01˚

Rated Load Inertia

16.53 lb ft2 / 7.5 m2 kg

Motor Noise

41dBA at Max Speed

Network

IP Ethernet

Power

Input: 100 to 240 VAC, 50/60 Hz
Consumption: 175 W

Fuse Protection

250 VAC, 3.15 A

Temperature Range

41 to 104°F / 5 to 40°C

Dimensions

19.29 x 17.17 x 9.25" / 490 x 436 x 235 mm

Weight

49.6 lb / 22.5 kg
