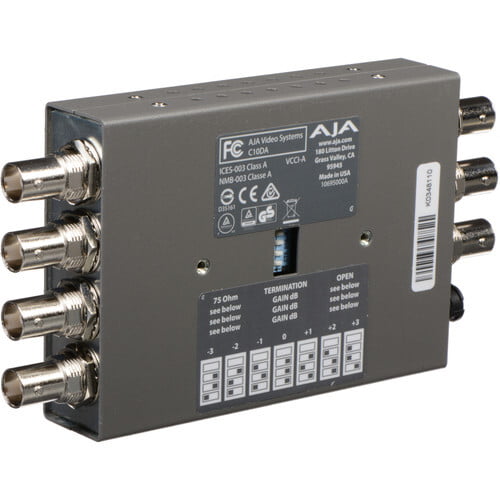

AJA C10DA Analog BNC 1x6 Distribution Amplifier
Formats
• NTSC
• PAL
• Bi-level Reference
• Tri-level Reference
• AES3-id
• LTC
Inputs
• 1 Analog, Differential, 1 x BNC
Outputs
• 6 Analog, 6 x BNC
Termination
• 75 Ohms or nonterminated
Video Bandwidth
• 0 – 6 MHz +/- 0.1dB
Gain
• -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Diff Gain
• 0.15%, not load dependent
Diff Phase
• 0.1 degree, not load dependent
H/V Tilt
• < 0.1%
Response Variation
• < 0.1dB 1 to 6 loads
Coupling
• DC
Max Common Mode Signal
• 10Vp-p
Return Loss
• > 35dB to 6 MHz all inputs and outputs
Output Isolation
• >40dB
User Controls
• External Dipswitch
• Termination
• Gain
Size (w x d x h)
• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Weight
• 0.8 lb (0.3 kg)
Power
• 5VDC Regulated, 2 Watts, power supply required, included with purchase
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
