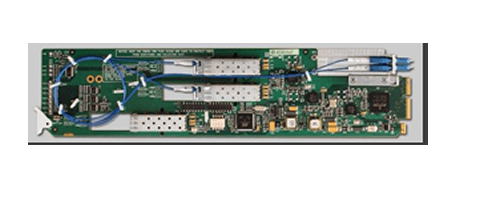

Ross Video FED-6944-XXH Dual Link Ethernet Fiber Transceiver (Quad Fiber) - High Power CWDM
Non-returnable
$4,314.12
Tags:
Dual Link Ethernet Fiber Tranceiver (Quad Fiber) - High Power CWDM
Quad Fiber, Dual TX and Dual RX, CWDM - individual wavelength per TX fiber
#NAME?
-27: 1270nm / 1290nm
-31: 1310nm / 1330nm
-35: 1350nm / 1370nm
-43: 1430nm / 1450nm
-47: 1470nm / 1490nm
-51: 1510nm / 1530nm
-55: 1550nm / 1570nm
-59: 1590nm / 1610nm
3 RJ45 copper ports, 2 LC Fiber Ports, 1 midplane port to optional MFC-8322 OG3 frame controller
VLAN and Trunking support
Requires R2-6944 Rear module
Occupies 2 slots in an openGear frame
Quad Fiber, Dual TX and Dual RX, CWDM - individual wavelength per TX fiber
#NAME?
-27: 1270nm / 1290nm
-31: 1310nm / 1330nm
-35: 1350nm / 1370nm
-43: 1430nm / 1450nm
-47: 1470nm / 1490nm
-51: 1510nm / 1530nm
-55: 1550nm / 1570nm
-59: 1590nm / 1610nm
3 RJ45 copper ports, 2 LC Fiber Ports, 1 midplane port to optional MFC-8322 OG3 frame controller
VLAN and Trunking support
Requires R2-6944 Rear module
Occupies 2 slots in an openGear frame
Product Details
- Dedicated 6 port, Gigabit Ethernet switch
- 3 independent copper Gigabit Ethernet ports
- Copper Ethernet connection: RJ45
- Quad LC Optical Connection
- Internal GigE midplane connection
- SNMP compliant
- Input Optical Sensitivity & Wavelength20km: -22dBm40km: -24dBm80km: -24dBmCWDM: -24dBmCWDM-H: -32dBm
- Output Power & Wavelength20km: -8dBm @ 1310nm40km: -2dBm @ 1310nm80km: 0dBm @ 1550nmCWDM: 0dBm @ 1270nm – 1610nmCWDM-H 2dBm @ 1270nm – 1610nm
