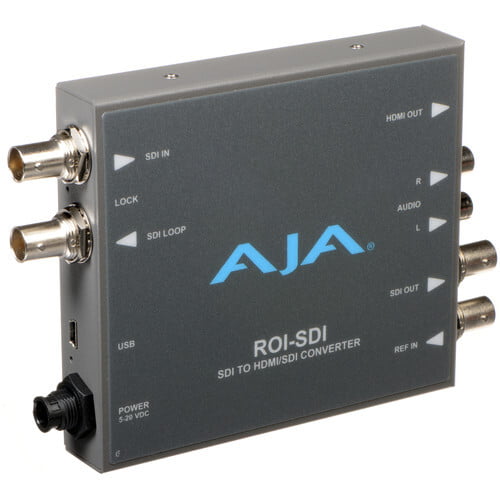

AJA ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter with ROI Scaling
$1,245.00
Tags:
AJA’s ROI-SDI Scan Converter allows exceptionally high quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs at an affordable price in a very portable form factor.
Product Details
SPECIFICATION
Video Input Formats
- (HD) 1920 x 1080i 50, 59.94
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i, 50
- (SD) 525i, 59.94
Video Output Formats
- (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
Color Range
- Full
- SMPTE
Reference Source
- Free Run
- Ext Ref
Reference Input
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75 ohm terminating
Video Input
- 1x 3G-SDI BNC, SMPTE-259/292/424
Video Outputs
- 1x 3G-SDI BNC, loop through
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 1x HDMI Type A, HDMI v1.4
HDCP
- ROI does not encode the HDMI output with HDCP encryption
Audio Output Digital
- SDI embedded audio, 24-bit, 8-Channel
- HDMI embedded audio, 24-bit, 2-Channel or 8-Channel
Audio Output Analog
- 2x Analog RCA Jack, 2-Channel
User controls
- USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
Size (w x d x h)
- 5.77" x 4.02" x 0.9" (146.56 x 102.11 x 22.86 mm)
Weight
- 0.6 lb (0.3 kg)
Power
- Uses AJA power supply model DWP-U-R1 (included with purchase)
- 100-240V, 50/60 Hz universal input
- 5-20V DC regulated, 7 watts max
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
