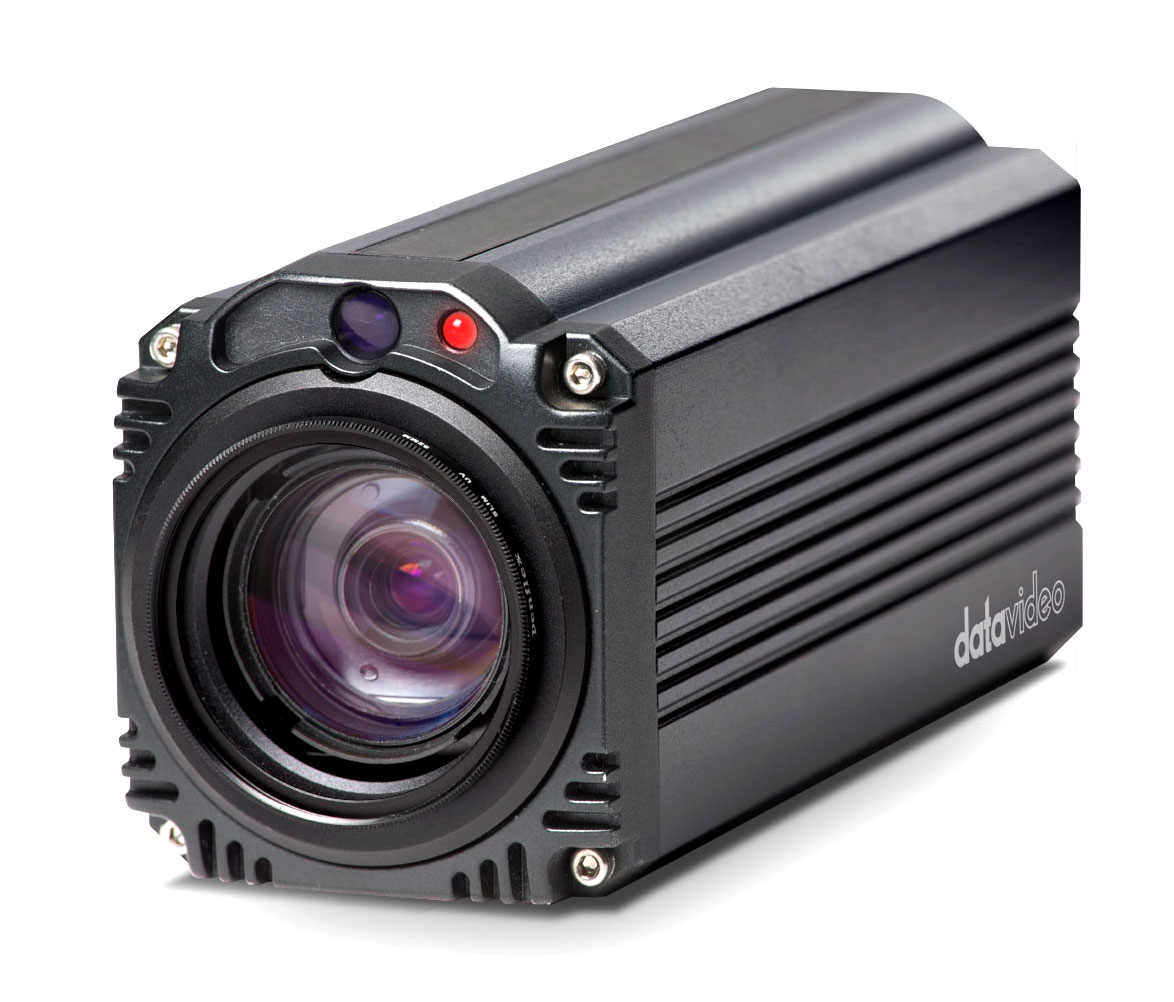

DATAVIDEO BC-50 - 1080P IP Camera with Streaming Encoder

Video format

1080p 60/50/30/25
1080i 60/50
720p 60/50

Image Sensor

1/2.7" progressive scan CMOS sensor

Effective Pixels (approx.)

2.07 Mega pixels

S/N Ratio

55 dB

Min. Illumination

0.05 Lux @ (F1.8, AGC ON)

Electronic Shutter

1/30 ~ 1/10000 sec

Zoom Ratio

20x Optical zoom, 16x Digital zoom

Gamma Control

Yes

Iris Control

Auto / Manual

Digital Noise Reductions

2D & 3D

On-Screen Display (OSD)

English, Simplified Chinese, Traditional Chinese

White Balance

Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K_1, 6500K_2, 6500K_3, One Push, Manual

AGC / Gain Control

Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Focal Length

f=4.3 mm (WIDE) to 88.5 mm (TELE)
F1.6 to F4.7

Field of View (Horizontal, Wide)

Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation

Day & Night function

Video Output

3G/HD-SDI x1

Audio Input

3.5mm Jack (Stream Output Only)

Tally LED

Dual color (Red, Green)

Filter

M52.0 x 0.75 Thread with UV Protection

Protocol

VISCA, Pelco-D, Pelco-C

Remote Control Interface and Transmit Distance

RS-485: Transmit up to 1000m

Video Compression Format

H.265, H.264, MJEPG

Audio Compression Format

AAC

Network Protocol

TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc

F/W Update

Ethernet

Tripod Mount

1/4-20 UNC

Options

PTR-10

Color

Dark blue

Dimension (LxWxH)

71 x 162 x 83 mm

Weight

0.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 6W

What's in the Box

1 x BC-50 main unit
1 x Thank You Card
1 x DC 12V power adaptor
