DATAVIDEO DAC-8PA-SDI to HDMI Converter
Non-returnable
$219.00
Tags:

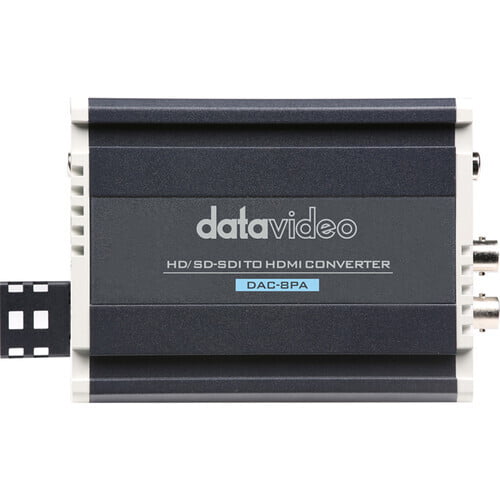

The Datavideo DAC-8PA SDI to HDMI Converter transforms an SDI video signal along with embedded audio for output on an HDMI output port, which has a support tab.
Product Details
SPECIFICATION
Model Number
DAC-8PA
Conversion
3G/ HD/SD-SDI para HDMI

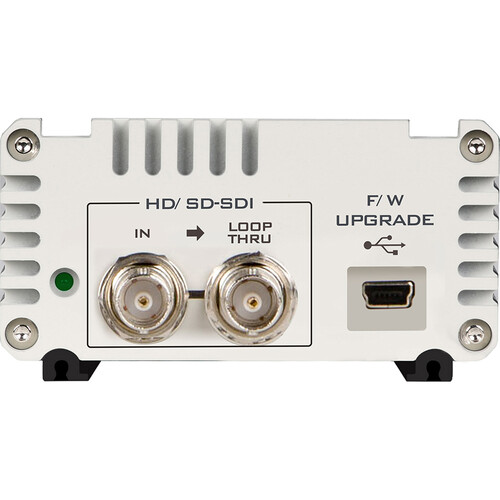

Video Inputs
1x 3G/HD/SD-SDI
Loop Through
1

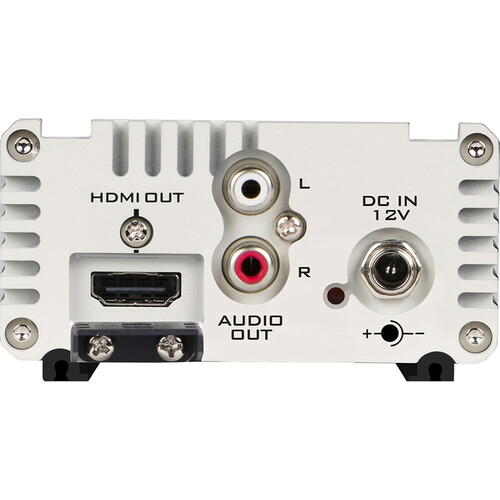

Video Outputs
1x HDMI
com Áudio embedded
Audio Inputs
2x SDI Áudio embedded
Audio Outputs
2x RCA (Esteréo)
Audio Format Selection
----
Audio Gain
----
Supported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
625i 50 (PAL), 525i 59.94 (NTSC)
Output Resolutions
Combina automaticamente a entrada de vídeo SD, HD e 3G SDI
Equalizer
Sim
Reclock
Sim
SDI Cable Drive
Sim
Updates and Configuration
Mini USB x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 4W
What's in the Box
1 x DAC-8PA produto
1 x AD Switch DC 12V
