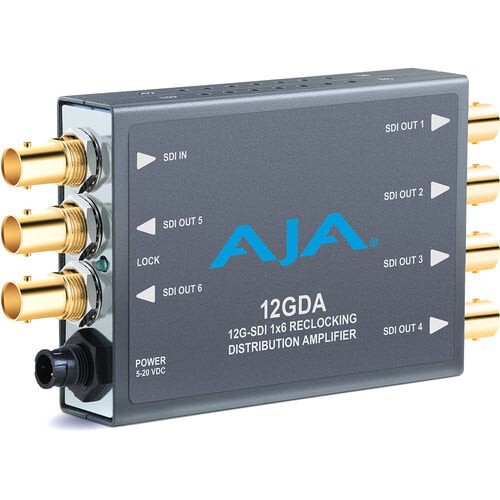

AJA 12GDA-R0 1x6 12G HD/SD SDI Reclocking Distribution Amplifier, 120M 12G
Video Formats
• 100 Mbps - 12 Gbps, format agnostic
Video Input Digital
• 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital
• 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Cable Equalization
(Belden 1694A coax)
• 12 Gbps, 70m
• 6 Gbps, 120m
• 3 Gbps, 190m
• 1.5 Gbps, 195m
• 270 Mbps, 405m
Reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked
Size (w x d x h)
• 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)
Weight
• 0.7 lb (0.3 kg)
Power
• +5-20VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
