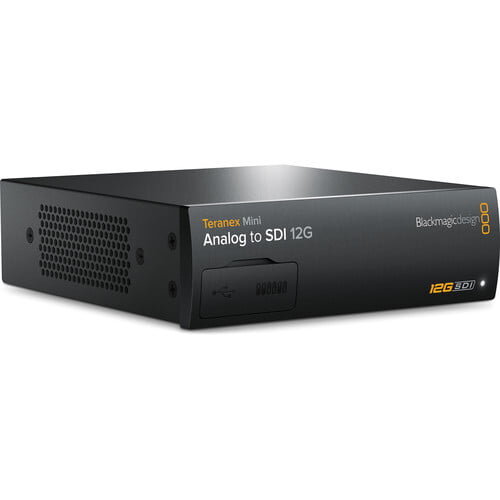

Blackmagic Design Teranex Mini Analog to SDI 12G Converter
Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet.
Specification
Analog Video Input | Component SD/HD, NTSC, PAL, and S‑Video |
SDI Video Output | 2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input) |
Analog Audio Input | 2 channels professional balanced analog audio via XLR connectors |
AES/EBU Audio Input | 4 channels professional 110 ohm balanced digital audio via XLR connectors |
Multi Rate Support | SDI output switchable between HD for composite and S-Video and 4K for component HD |
Updates and Configuration | USB or Ethernet |
Re-Clocking | Yes |
SDI Format Support | 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
Analog Format Support | 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60 |
SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, and ITU-R BT.601 |
SDI Video Rates | SDI video connections are switchable between standard definition and high definition |
SDI Video Sampling | 4:2:2 and 4:4:4 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K |
SDI Color Space | REC 601, REC 709 |
Analog Color Space | REC 601, REC 709 |
Analog Color Precision | 4:2:2 |
Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
Internal Software Upgrade | Via included updater application |
Basic Settings Control | Mini Switches, USB, and Ethernet via free software utility |
Power Supply | 1x built-in international AC power supply with IEC C14 inlet |
Power Over Ethernet | Can be powered via 48 VDC using PoE (Power-over-Ethernet) |
Power Consumption | 15 W |
Operational Voltage Range | 90 - 240 VAC |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Relative Humidity | 0 to 90% non-condensing |
Dimensions | W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included) |
Weight | 0.891 kg) |
