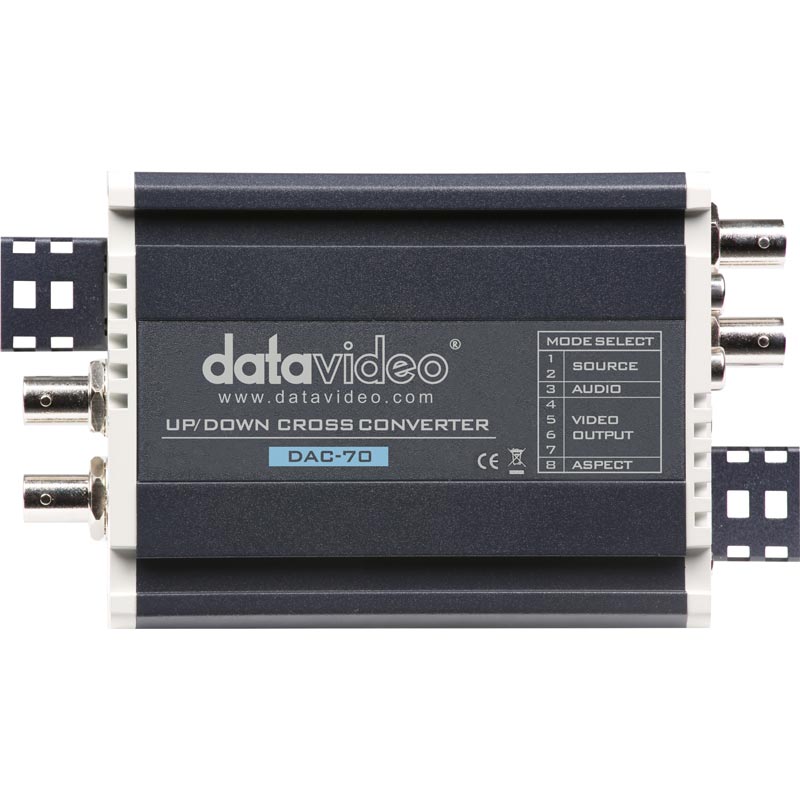

DATAVIDEO DAC-70 - Multi format up /down /cross converter

Conversion

VGA/HDMI/SDI to HDMI/SDI
Multi-format Up/Down/Cross

Video Inputs

1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)

Loop Through

Yes

Video Outputs

2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
1x HDMI

Audio Inputs

2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded

Audio Outputs

SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio

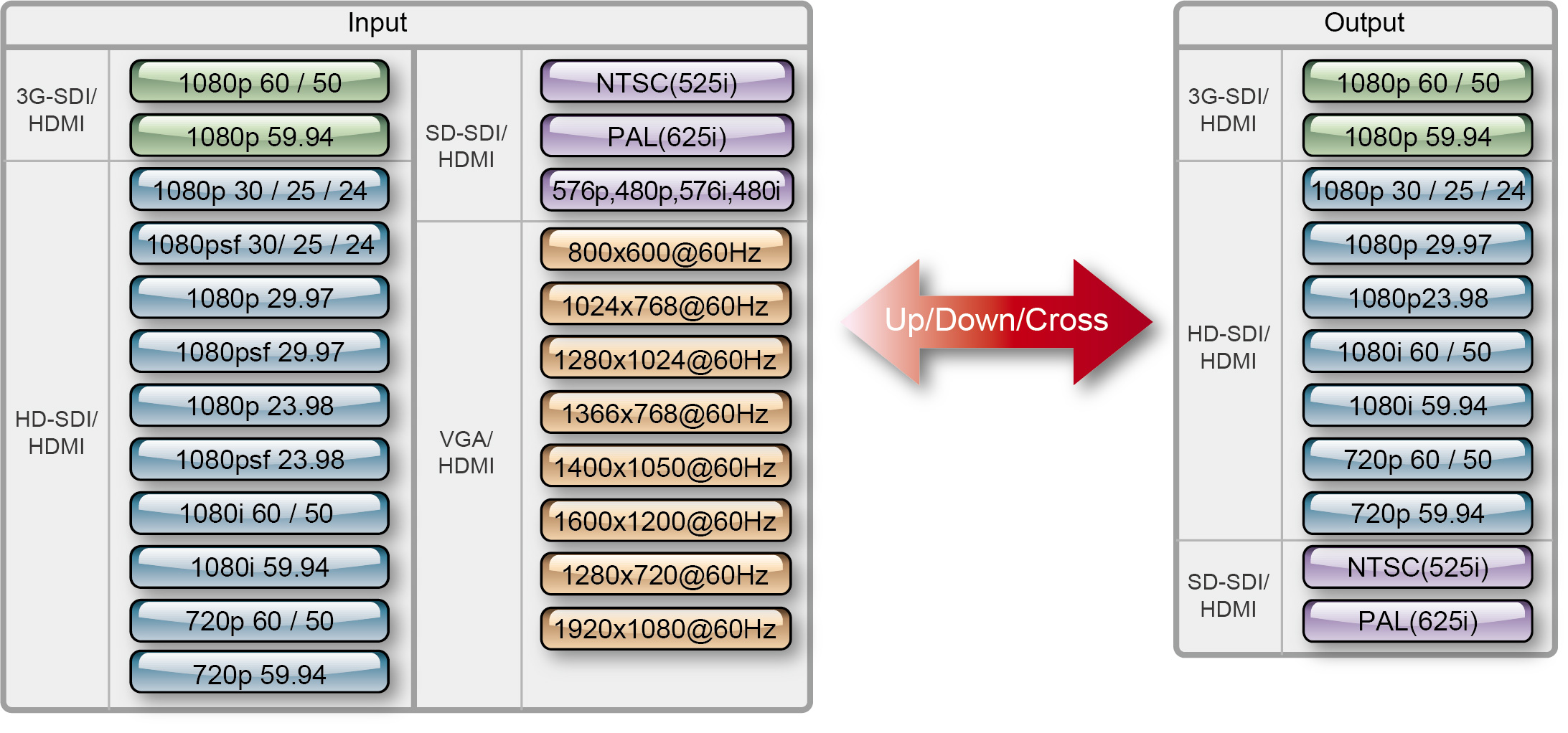

Supported Video Input Formats

1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)

Output Resolutions

1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i

Equalizer

Yes

Reclock

Yes

SDI Cable Drive

Yes

Dimension (LxWxH)

112 x 85 x 45 mm

Weight

0.4 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 6W

What's in the Box

1 x DAC-70
1 x AD Switch DC 12V
1 x DIP switch Pin 8 label
1 x Thank You Card
