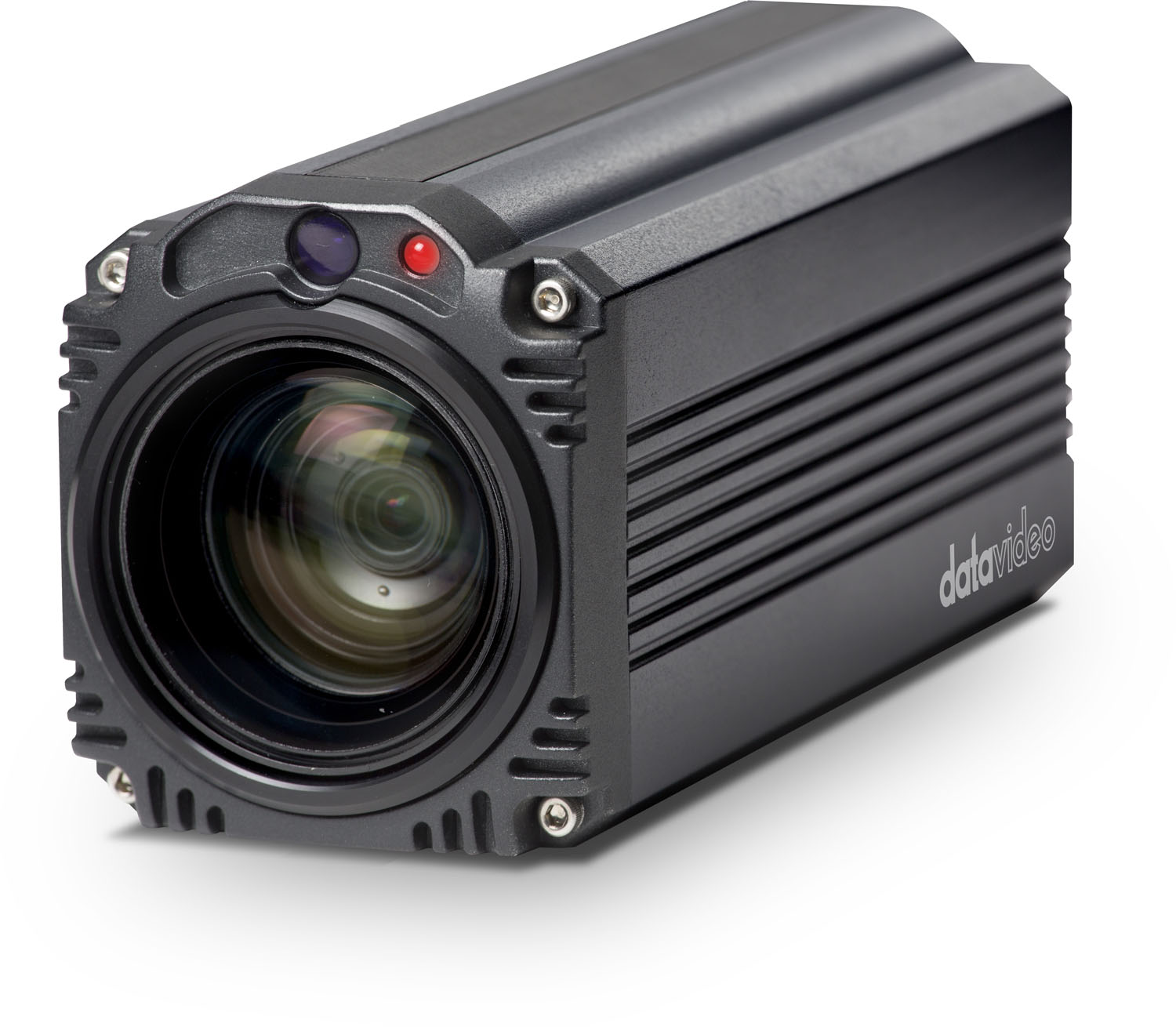

DATAVIDEO BC-200 - 4K Block Camera

Video format

2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50

Image Sensor

1/2.3” type Exmor R CMOS

Effective Pixels (approx.)

8.93 Mega pixels

Min. Illumination

50%, High Sensitivity Mode:
Color: 0.75 lx (F1.8, AGC on, 1/30 sec)
50%, Normal Mode:
Color: 3 lx (F1.8, AGC on, 1/30 sec)

Electronic Shutter

1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215(1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec

Zoom Ratio

12x Optical Zoom

Gamma Control

Off / Normal / Standard Mode 1-4

Iris Control

Auto / Manual

Digital Noise Reductions

Yes

On-Screen Display (OSD)

English

White Balance

Auto, Indoor, Outdoor, Sodium Vapor Lamp, One-push, Manual

AGC / Gain Control

Auto/Manual (0 dB to 33 dB)
Max. Gain Limit (9 dB to 33 dB)

Mirror / Flip Image

Yes

Focus Mode

Auto (Sensitivity: normal, low) / One-push AF / Manual / Zoom Trigger AF

Preset

10 Position

Focal Length

f=3.9 mm (wide) to 46.8 mm (tele)

Field of View (Horizontal, Wide)

Approx. 70.7° (WIDE END) / 6.4° (TELE END)

Image Compensation

Day & Night Function

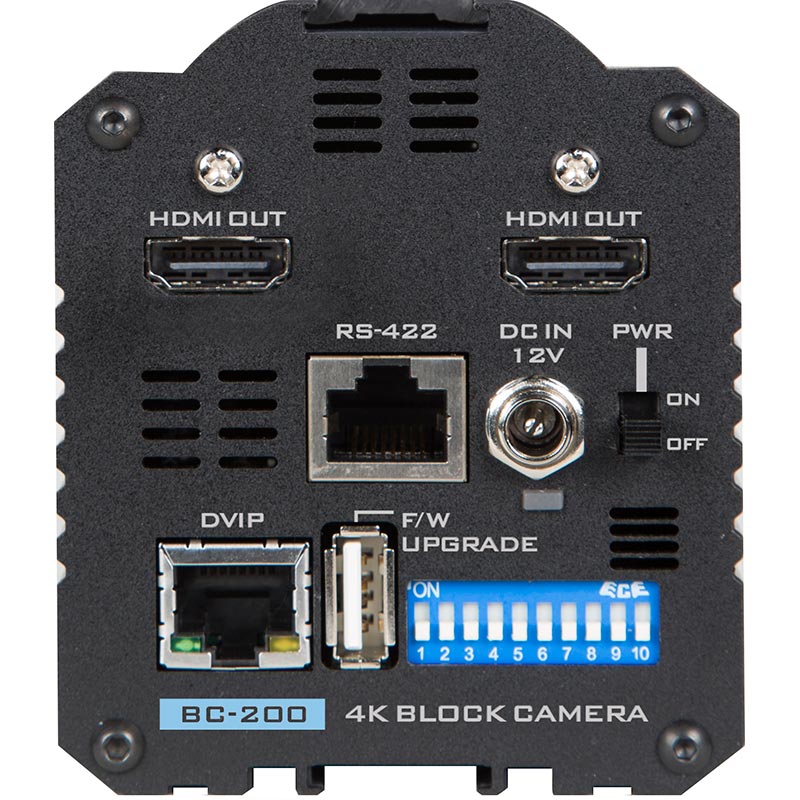

Video Output

HDMI x 2

Tally LED

Dual color (Red, Green)

Protocol

VISCA / DVIP Protocol

Remote Control Interface and Transmit Distance

RS-422: Transmit up to 1000m
DVIP (RJ45): 100m

F/W Update

USB

IR Control

Yes

Camera Control Unit

RMC-180/RMC-300C

Tripod Mount

1/4-20 UNC

Options

PTR-10

Color

Dark blue

Dimension (LxWxH)

71 x 183 x 83 mm

Weight

0.9 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 15W

What's in the Box

1 x BC-200 main unit
1 x Thank You Card
1 x IR remote control
1 x DC 12V power adaptor
