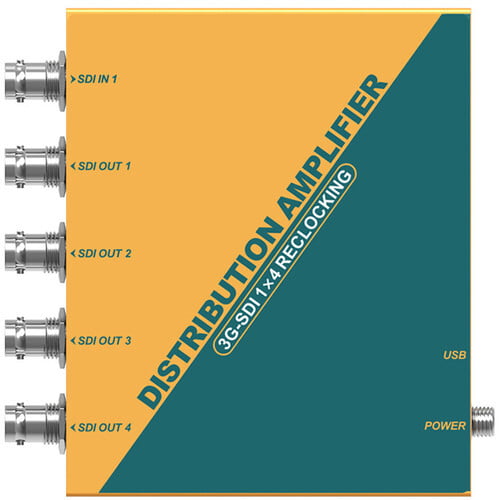

AVMATRIX 1x4 3G-SDI RECLOCKING Distribution Amplifier

SPECIFICATION

Connections

Input

SD/HD/3G-SDI X1

Output

SD/HD/3G-SDI x4 (output 2 & 4 support DVB-ASI)

Formats

SDI Input Format Support

(2K) 2048x1080p 30/29.97/25/24/23.98
(2K) 2048x1080PsF 30/29.97/25/24/23.98
(HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920x1080PsF 30/29.97/25/24/23.98
(HD) 1920x1080i 60/59.94/50
(HD) 1280x720p 60/59.94/50
(HD) 1280x720p 30/29.97/25/24/23.98
(SD) 625i 50
(SD) 525i 59.94

SDI Video Rate

SD/HD/3G-SDI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M
SMPTE 424M, SMPTE 425M

ASI Compliance

DVB-ASI

SDI Color Space and Precision

RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit

SDI Auto Switching

Auto selects SD, HD and 3G-SDI on input

Power

Power Connector

Micro USB, Threaded locking connector

Voltage Range

USB 5V, DC 5~17V

Power Consumption

1W

Environment

Operating Temperature

-20C ~ 60C

Storage Temperature

-30C ~ 70C

Relative Humidity

0%-90% non-condensing

Size

Size

125.5 x 104 x 24.5mm

Weight
