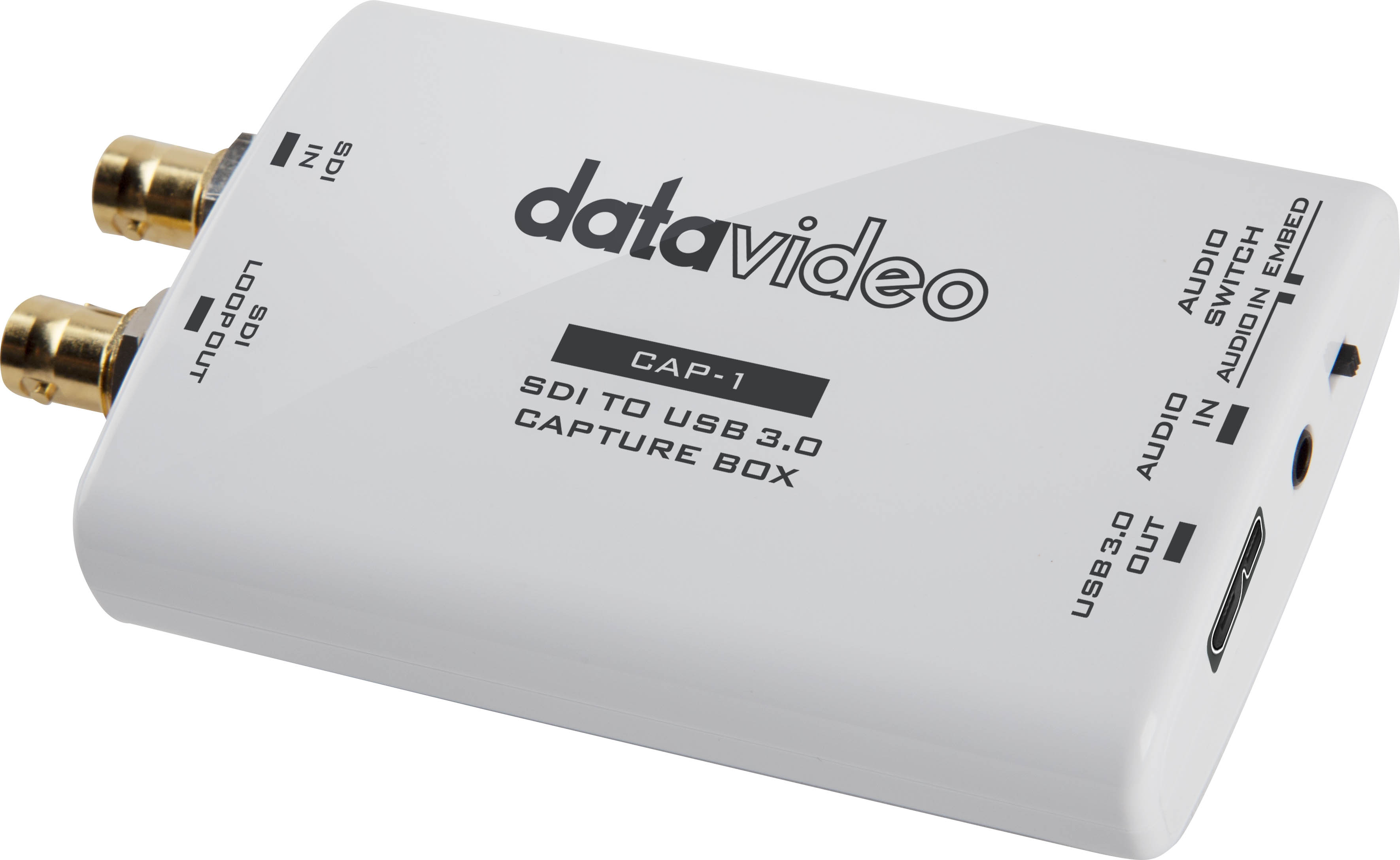

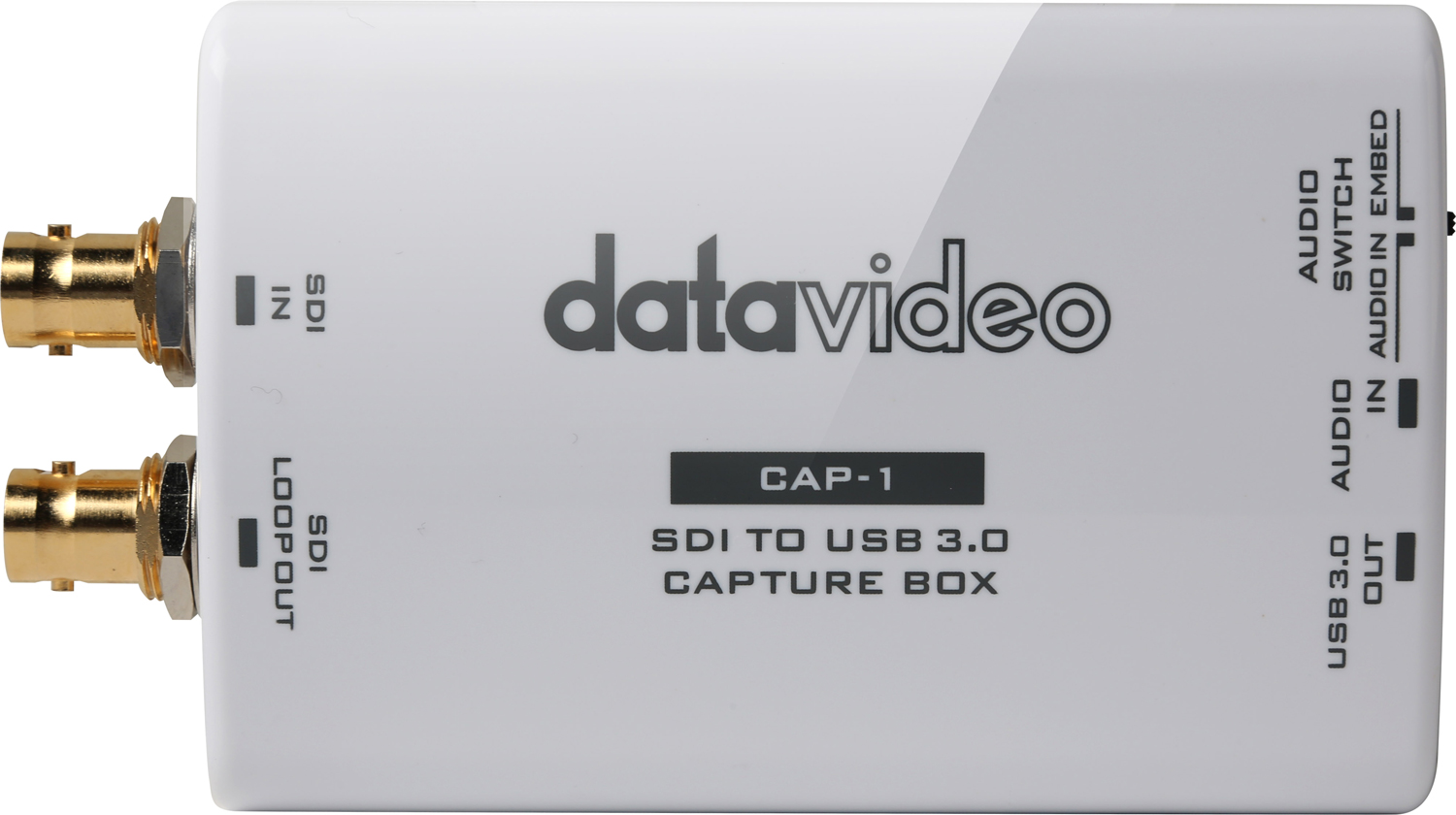

DATAVIDEO CAP-1 - SDI to USB 3.0 Capture Box

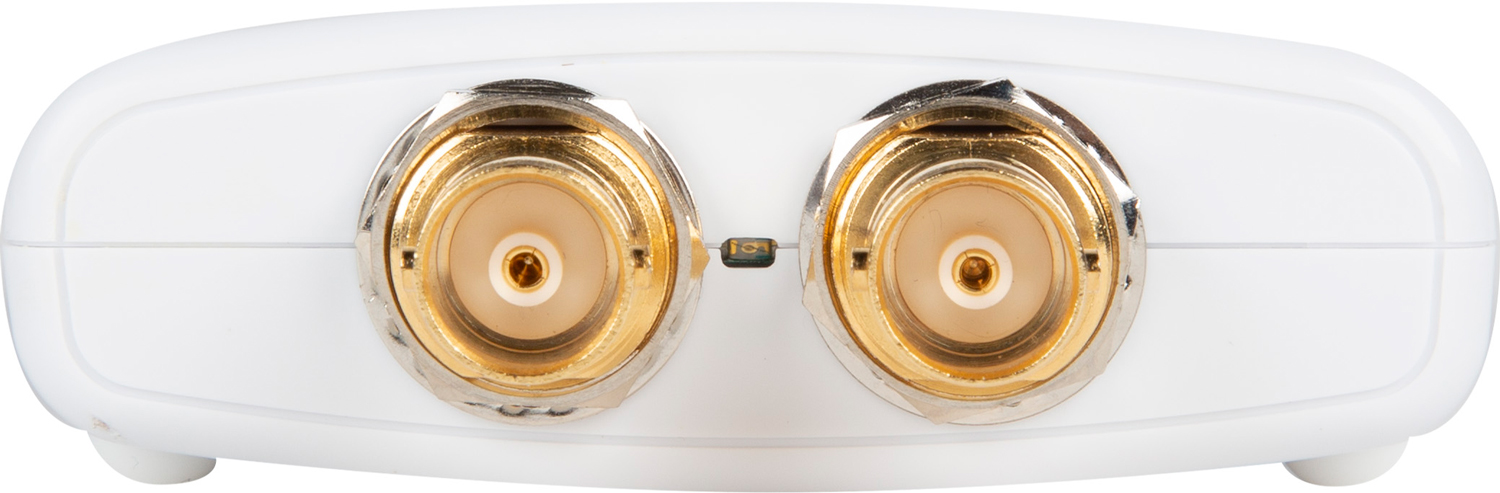

Input

1x HD/3G-SDI

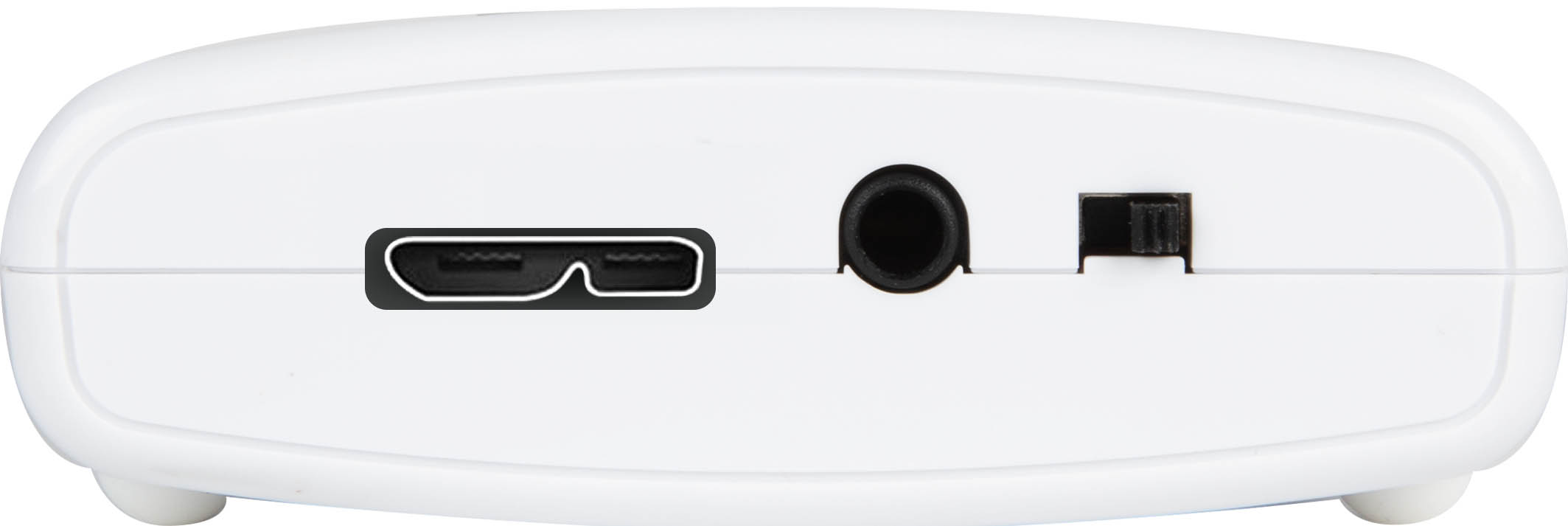

Output

1x USB 3.0 (Micro B)
1x SDI loopthrough

Input Video Bandwidth

150MHz (pixel clock rate)

Output Video Bandwidth

Up to 350Mbps (USB)

Supported Input /Output Video Formats

1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1280 x 720p 60/59.94/50

Audio Input

SDI Embedded Audio & 3.5 mm stereo in

Audio Format

2-Channel, 16-bit PCM

Recording Video Format

YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

Via USB Port

Software Compatibility

Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime

Supported OS

Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04

Power Supply

Via USB

Power Consumption

3W

Operation Temperature

0~40°C

Storage Temperature

-20~60°C

Humidity

20~90% RH

Minimum System Requirement

• Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
  Note: The driver is required for Windows 7 OS
• OS X (10.10 or above)
• Linux Ubuntu 14.04
• PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
• Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher

Dimension (LxDxH)

121 x 68 x 23 mm

What's in the Box

1 x CAP-1
1 x Thank You Card
1 x USB 3.0 Cable
