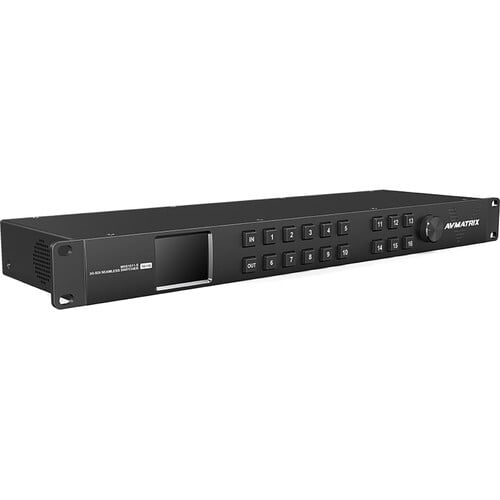

AVMATRIX 16CH SDI Multi-viewer &16x16 SDI Matrix Switcher
The 1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs.
Specification
Multi-View Monitoring
Inputs | 16 x SD/HD/3G-SDI |
Loop Outputs | 16 x SD/HD/3G-SDI |
Outputs | 2 x SDI |
Resolution | SDI Input: |
SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input |
SDI Video Rates | SD/HD/3G-SDI |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M |
Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input) |
Switcher
Inputs | 16 x SD/HD/3G-SDI/DVB-ASI |
Outputs | 16 x SD/HD/3G-SDI/DVB-ASI |
SDI Format Support | 2048 x 1080p at 30/29.97/25/24/23.98 Hz |
SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input |
SDI Video Rates | SD/HD/3G-SDI |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI |
Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4 |
General
Controls | Front Panel Buttons and Knob |
Connectors | LAN (Software and Update) |
Display | 2.2" / 5.6 cm LCD Screen |
Voltage | 12 to 20 VDC |
Power Supply | PS-1, PS-2, Power Redundancy |
Power Consumption | 36 W |
Operating Temperature | 32 to 140°F / 0 to 60°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Humidity | 0 to 90% |
Rack Size | 1 RU |
Dimensions | 19.0 x 1.7 x 5.9" / 48.3 x 4.4 x 14.9 cm |
Weight | 4.4 lb / 2 kg |
Packaging Info
Package Weight | 3 kg |
Box Dimensions (LxWxH) | 21.9 x 10.5 x 3.3" |
