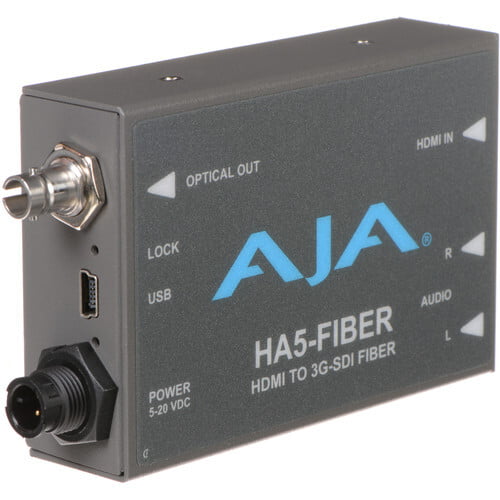

AJA HA5-Fiber HDMI to 3G-SDI over Fiber Video and Audio Converter
Input Formats
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i
• (SD) 625p
• (SD) 576p
• (SD) 525i
• (SD) 525p
• (SD) 480p
NOTE: HDCP content not supported
Output Formats
• (HD) 1080i 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1080p 50, 59.94, 60 - SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
• (HD) 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97
Video Input
• HDMI with embedded audio, up to 8-Channels
Video Output
• Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
Audio Input
• 2-Channel RCA style analog audio (-10dBu nominal)
Audio Output
• SDI embedded audio
Optical Output
• Wavelength: 1310nm
• Output Power: -2dBm typical
Size (w x d x h)
• 4.4” × 2.4” × 1.0” (112mm × 61mm × 25mm)
Weight
• 0.3 lb (0.2 kg)
Power
• Uses AJA power supply model DWP-U-R1, included with purchase
• 100-240V, 50/60 Hz universal input
• +5V DC regulated, 4.5 watts
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
