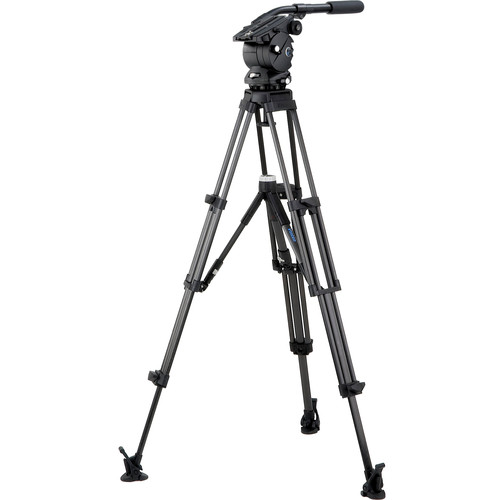

Vinten System Vision 8AS 2-stage CF PL MS SC
The Vinten Vision 8AS Pozi-Loc Carbon Fiber Tripod System features a 100mm fluid head, 2-stage carbon fiber tripod with mid-level spreader, and a soft padded carrying case. The head supports loads up to 30.9 pounds and utilizes Vinten's Perfect Balance counterbalance system and LF drag technology, which combines an adjustable friction system with a lubricant fluid for fine adjustment of pan and tilt drag.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Tripod Platform
Base Mount | 100 mm Half Ball |
Pan & Tilt
Drag Control | 9-Step |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 12.1 to 30.8 lb / 5.5 to 14 kg at CoG 4" / 100 mm |
Counter Balance | Continuous (12.1 to 27.6 lb / 5.49 to 12.52 kg) |
Bubble Level | 1 x Illuminated |
Dimensions | 6.3" / 16 cm |
Weight | 3.1 kg |
